Product Information

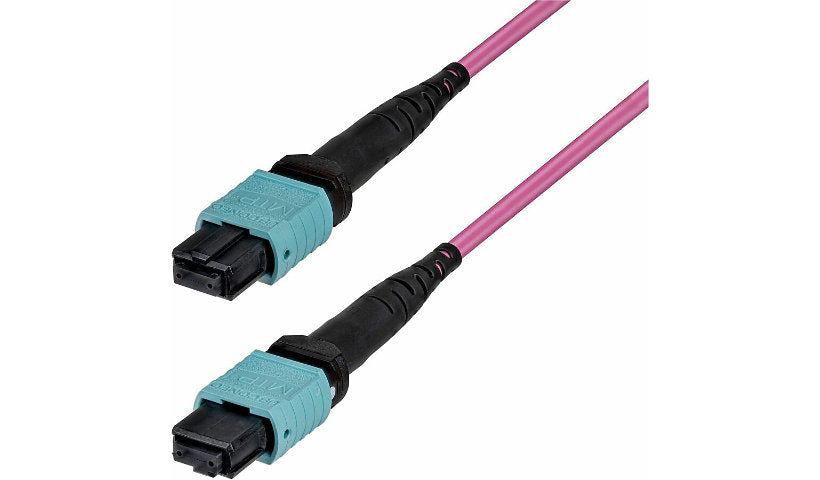

This OM4 MTP®/MPO multimode fiber cable handles high-density 40G and 100G links between switches and servers, cutting down on cable bulk and making routing across data hall racks easier. Thanks to its 12-fiber layout, it gives you fast MTP®/MPO links across multi-fiber setups, and the Erika Violet jacket follows TIA color standards so OM4 is easy to tell apart from aqua OM3 cabling.
Made with OM4 50/125 µm laser-optimized Corning glass, the cable gives steady, high-bandwidth performance over data center and backbone runs. The Type-B polarity MTP® Elite connector keeps transmit and receive correctly aligned on multi-lane connections, so no extra crossover parts are needed. Every cable is individually tested for signal integrity.
The OFNP plenum-rated jacket satisfies tough fire safety and low smoke requirements, so the cable can be routed through air-handling spaces in commercial and enterprise buildings, including data center and in-wall pathways.
It is designed for structured MTP®/MPO systems such as multi-fiber trunks, cassettes and patching setups, so your fiber network can grow and move between 10G, 40G and 100G with ease. The 12-fiber format packs in more connections with fewer cables, for cleaner and more efficient installs.
Specifications:
Brand: StarTech.com
Manufacturer part number: OM4MTP12BOFNP2M
Cable type: Patch Cable
Fiber mode: Multimode
Core/cladding: 50/125 µm
Connector gender: female on both ends
Data rate: 100 Gbit/s
Jacket: OFNP, Plenum
Features: Corning Glass, Laser-optimized
Length: 2 m (6.56 ft)
Height: 0.3 inch
Width: 0.6 inch
Weight: 0.06 lb
Color: Erika Violet
Works with: Fiber Optic Cassette, Network Device, Optical Panel, Rack, Server, Switch, Vertical Cavity Surface Emitting Laser (VCSEL)
Use: Backbone, Commercial, Data Center
Quantity in package: 1
Warranty: Lifetime
Light source: 850 nm or 1300 nm VCSEL
Modal bandwidth: 4700 MHz·km or higher at 850 nm
Cable outer diameter: 3.0 mm
Temperature range: 0 to 70°C (32 to 158°F)
Best for: data centers, SANs and QSFP+ links
