Product Information

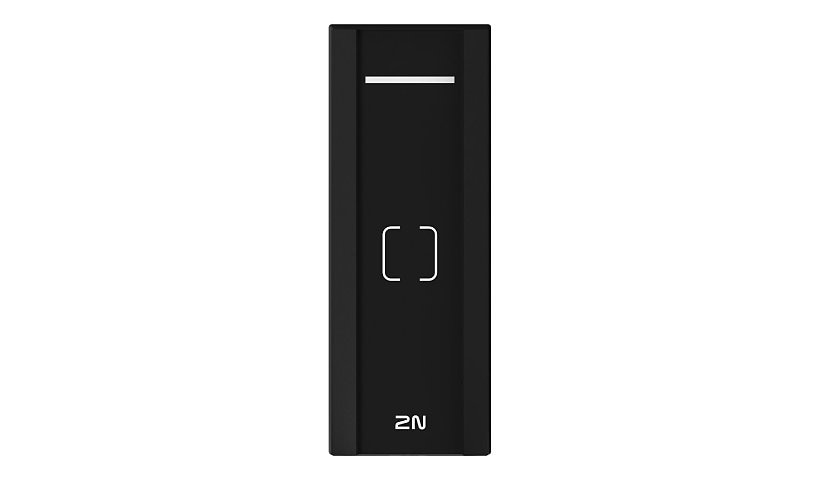

The 2N Access Unit M is a compact office reader with a built in controller that installs on a door frame and connects and powers over a single UTP cable. It reads 13.56 MHz FeliCa, iCLASS and DESFire EV2/EV3 cards plus Bluetooth and NFC mobile credentials, uses 128-bit encryption and runs on PoE or 12 V DC. It has a tamper switch and tempered glass face.
Key Features
- Built in door controller
- 13.56 MHz, Bluetooth, NFC
- iCLASS, DESFire, FeliCa
- PoE or 12 V DC, one cable
- Door frame mount
- Tamper switch, tempered glass
Product Information
Brand: 2N
Product Line: 2N
Model: Access Unit M
Product Type: Access control terminal with RFID reader
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features #2: 13.56 MHz card technology
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet
Wired Protocol: 10/100 Ethernet
Wireless LAN: Bluetooth 5.0 LE, NFC, RFID
Frequency Band: 13.56 MHz
Operating System Required: Android 12 or later, Apple iOS 18 or later, Apple VisionOS 2.0 or later, WatchOS 11.2 or later
Features: 128-bit encryption, Auto-uplink (auto MDI/MDI-X), DHCP Option 66, HTTP support, HTTPS support, SMTP support, Syslog support, TFTP support
Features: 13.56 MHz card technology
Connectivity
Interfaces: LAN/power, Tamper switch
Power Over Ethernet (PoE): PoE
Power
Power Source: PoE
Required Voltage: DC 12 volt
Technical Information
Card Technology: FeliCa, HID iCLASS, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3
Rated Current: 1 ampere
Touchscreen: No
Integrated Components: Buzzer, NFC reader, RFID reader
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Materials: Plastic, Tempered glass
Dimensions and Weight
Height: 5.2 inch
Width: 2 inch
Depth: 1.1 inch
Weight: 17.64 ounce
Certifications and Listing
Compliant Standards: EN 18031-1: 2024, EN 300 328 V2.2.2, EN 300 330 V2.1.1, EN 301 489-1 V2.2.3, EN 301 489-17 V3.1.1, EN 301 489-3 V2.1.1, EN 50364:2018, EN 55035:2017, EN 62311, EN 62368-1:2020+A11:2020, EN 62479:2010, EN 63000:2018, IEEE 802.3af, IK07, IP55, ISO 14443 type A, RED 2014/53/EU, RoHS 2011/65/EU
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
