Product Information

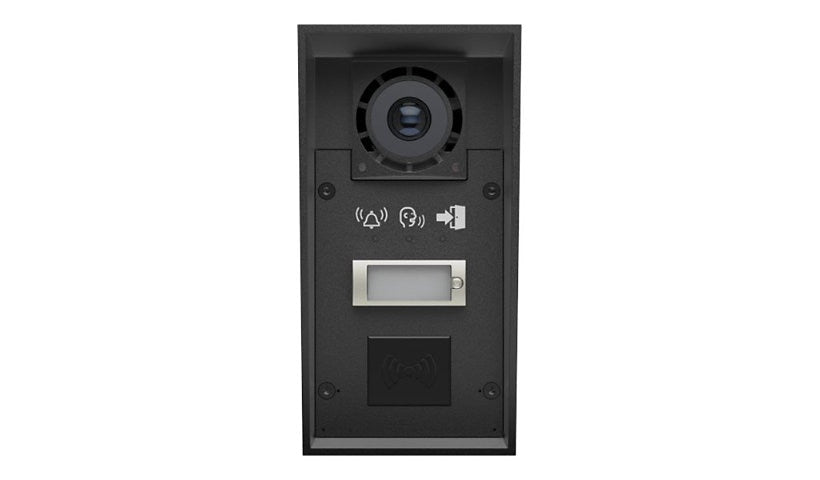

The 2N IP Force 2.0 is a rugged aluminum IP intercom with one button, pictograms, a 10 W speaker and two microphones, plus a camera up to 2560 x 1920 with IR night vision and WDR. It is card reader ready for 125 kHz and 13.56 MHz credentials including HID Prox, iCLASS SE/Seos and DESFire, controls up to two locks and is PoE+ powered.
Key Features
- 1 button, pictograms
- Camera up to 2560 x 1920, IR, WDR
- 10 W speaker, 2 microphones
- RFID ready, 125 kHz and 13.56 MHz
- Up to 2 locks, Wiegand
- PoE+, Gigabit Ethernet, SIP
Product Information
Brand: 2N
Product Line: 2N IP
Model: Force 2.0
Product Type: IP intercom station
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features #2: 0.1 lux minimum illumination, 1 button, H.264 compression standard, H.265 compression standard, Infrared light, MJPEG streaming video, Pictograms, Up to 2 locks, Wide Dynamic Range (WDR)
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, Wiegand
Wired Protocol: Wiegand/10/100/1000 Ethernet
Encryption: TLS
Wireless LAN: RFID
Frequency Band: 125 KHz, 13.56 MHz
Features: Automatic Media-Dependent Interface Crossover (MDIX), RTP support, SIP support, TCP/IP support, TLS encryption
Features: 0.1 lux minimum illumination, 1 button, H.264 compression standard, H.265 compression standard, Infrared light, MJPEG streaming video, Pictograms, Up to 2 locks, Wide Dynamic Range (WDR)
Connectivity
Interfaces: Gigabit Ethernet
Power Over Ethernet (PoE): PoE+
Power
Power Source: PoE, Power adapter
Technical Information
Card Technology: FeliCa, HID iCLASS, HID iCLASS SE, HID iCLASS Seos, HID MIFARE DESFire, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3, HID Prox
Functions: Access control, Lock control
Min Focal Length: 1.935 millimetre
Night Vision: Yes
Touchscreen: No
Integrated Components: 2 microphones, Speaker (10W)
Max Video Resolution: 2560 x 1920
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Materials: ADC12 aluminum alloy
Dimensions and Weight
Weight: 4.41 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3at, IP69K
