Product Information

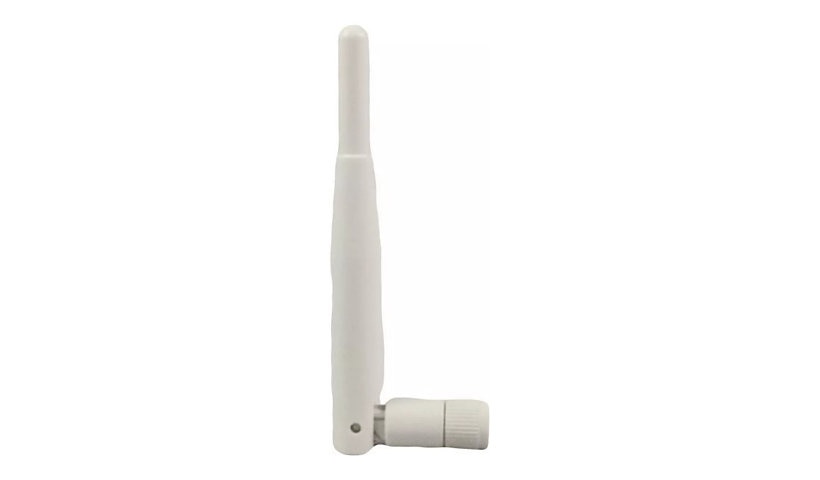

The AccelTex ATS-00852 is an indoor articulating rubber duck antenna for 802.11n, ac and ax access points, with 2 dBi at 2.4 GHz and 3 dBi at 4.9 to 5.85 GHz and a 360° pattern. It has an RP-SMA plug and is about 5.1 in long in white.
Key Features
- Dual band 2.4 / 5 GHz
- 2 dBi / 3 dBi omni
- Articulating rubber duck
- RP-SMA plug
- Indoor use
- About 5.1 in, white
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Gain: 2 dBi (for 2.4 - 2.5 GHz), 3 dBi (for 4.9 - 5.85 GHz)
Antenna Placement: Indoor
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Features: 90 degrees articulation, Vertical polarisation
Connectivity
Connector Provided: RP-SMA plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Rubber duck
Horizontal Beamwidth: 360°
Voltage Standing Wave Ratio (VSWR): 2.0:1 max
Dimensions and Weight
Height: 5.1 inch
Width: 0.5 inch
Depth: 0.5 inch
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
