Product Information

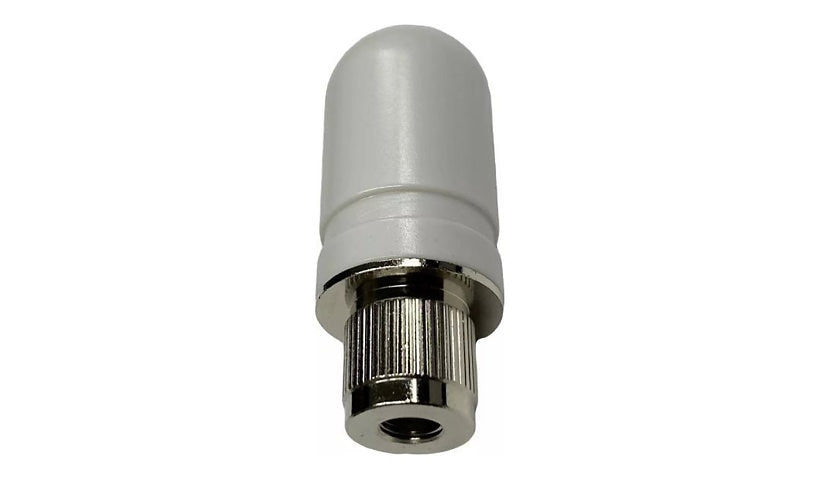

The AccelTex ATS-00855 is a short 1.9 in stubby omni antenna for 2.4 and 5 GHz access points, with 2 dBi and 3.5 dBi gain and an RP-SMA plug, for indoor or outdoor use.
Key Features
- Dual band 2.4 / 5 GHz
- 2 / 3.5 dBi omni
- RP-SMA plug
- Stubby, 1.9 in
- Indoor / outdoor
- White
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 2 dBi (for 2.4 - 2.5 GHz), 3.5 dBi (for 4.9 - 5.85 GHz)
Antenna Placement: Indoor / outdoor
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Features: Vertical polarisation
Connectivity
Connector Provided: 1 x RP-SMA plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Stubby
Horizontal Beamwidth: 360°
Vertical Beamwidth: 144° (at 2.4 - 2.5 GHz), 95° (at 4.9 - 5.85 GHz)
Voltage Standing Wave Ratio (VSWR): =2.0
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Width: 0.7 inch
Length: 1.9 inch
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
