Product Information

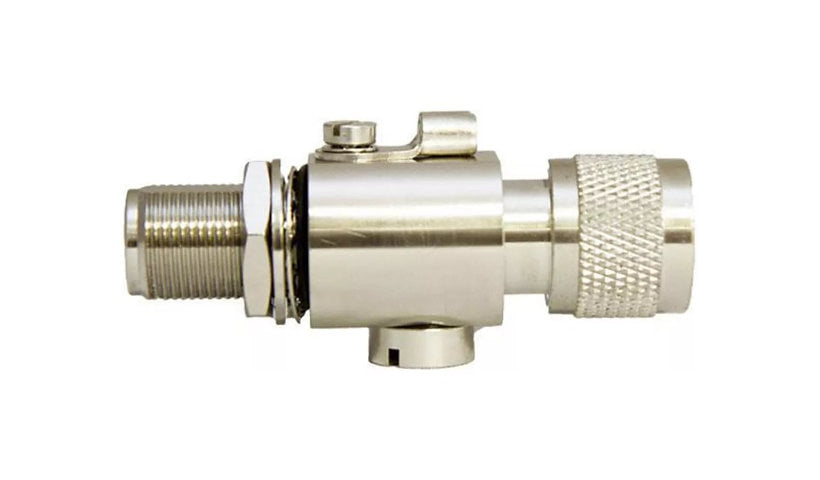

The Hubbell AccelTex ATS-00950 is a bulkhead lightning arrester with an N female jack and N male plug, a protection accessory rather than an antenna. It uses a gas discharge tube, gold plated connectors, brass and phosphor bronze with Teflon insulation, and withstands 2500 V. It is 4.5 inches long, works indoors or outdoors and can fit a bulkhead, an internal DIN rail or the L support bracket.
Key Features
- Lightning arrester, not an antenna
- N female to N male
- Gas discharge tube
- Gold plated connectors
- Bulkhead or DIN rail mount
- 4.5 inch length
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Lightning arrester
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Features: 2500 V dielectric withstanding voltage (RMS, conductive surface), Bulkhead mounting, Gas discharge tube (GDT), Gold plated connectors, Internal DIN rail mount, L Support Bracket
Connectivity
Connector Provided: 1 x N-Series connector female, 1 x N-Series connector male
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Materials: Brass, Phosphor bronze, Teflon insulation
Dimensions and Weight
Height: 1.5 inch
Width: 2 inch
Length: 4.5 inch
Certifications and Listing
Compliant Standards: IEC 6019-16, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n, RoHS 2011/65/EU
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
