Product Information

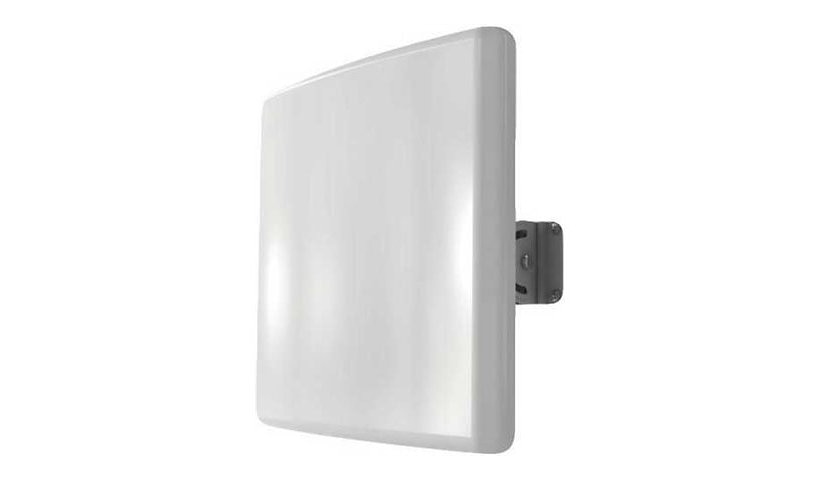

The AccelTex ATS-01022 is a 6 element high density directional patch antenna for enterprise APs, with 13 dBi at 2.4 GHz and 12 dBi at 5 GHz and dual polarization. It has six N-type connectors, is IP66 rated, handles up to 100 W and mounts on a wall or pole indoors or out.
Key Features
- Dual band 2.4 / 5 GHz
- 13 / 12 dBi high density patch
- 6 elements, dual polarization
- 6 x N-type
- IP66, 100 W max
- Wall or pole mount
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 12 dBi (for 4.9 - 5.85 GHz), 13 dBi (for 2.4 - 2.5 GHz)
Antenna Placement: Indoor / outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 6 x antenna - N connector
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: 6 elements, Direct grounded, Horinzontal/vertical polarization, IP66, VSWR < 2.0:1
Max Power: 100 watt
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA)
Dimensions and Weight
Height: 19.3 inch
Width: 19.3 inch
Depth: 1.4 inch
Weight: 21.16 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
