Product Information

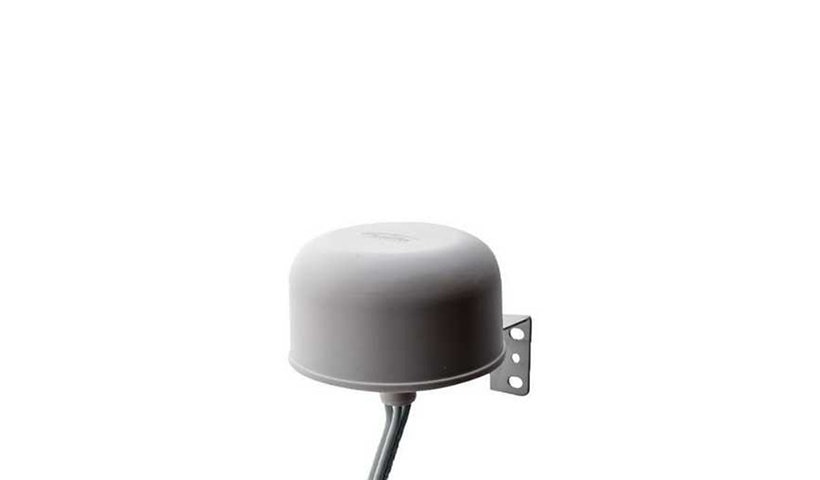

The AccelTex ATS-01049 is a 4 element dual band omni dome antenna with 4 dBi at 2.4 GHz and 6 dBi at 5 GHz, made for Cisco Catalyst access points with RP-TNC ports. It has four RP-TNC plugs, a white ASA housing rated -40 to 149 °F, and an included kit for wall or pole mounting indoors or out.
Key Features
- Dual band 2.4 / 5 GHz
- 4 / 6 dBi omni dome
- 4 x RP-TNC plugs
- For Cisco Catalyst APs
- -40 to 149 °F
- Wall / pole mount kit
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.5 GHz), 6 dBi (for 4.9 - 5.85 GHz)
Antenna Placement: Indoor / outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Features: > 20 dB isolation, 100W max. input power, 130mph (210km/h) rated wind velocity, DC-grounded, RPTNC connector
Connectivity
Connector Provided: 4 x RP-TNC plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Horizontal Beamwidth: 360°
Vertical Beamwidth: 144° (at 2.4 - 2.5 GHz), 55° (at 4.9 - 5.85 GHz)
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Mounting Kit: Included
Materials: ASA plastic
Dimensions and Weight
Width: 2.8 inch
Depth: 4.7 inch
Warranty
Service Activation: No
