Product Information

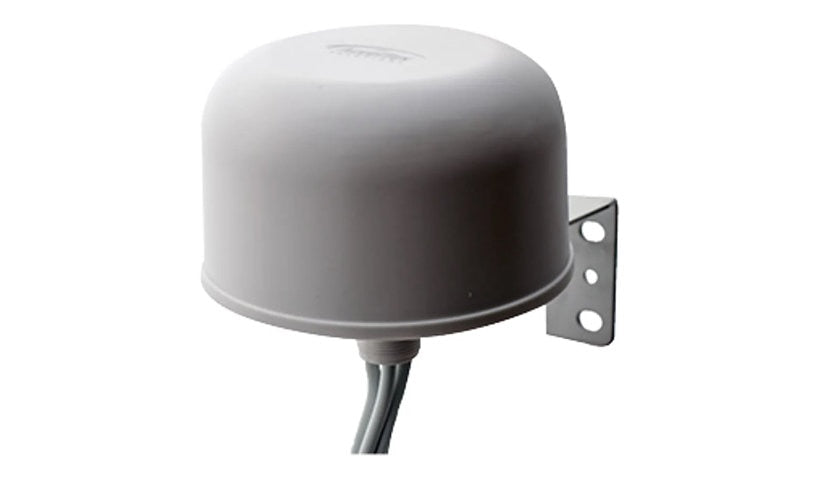

The AccelTex ATS-01060 is a compact 6 element omni antenna for Wi-Fi 6E and Wi-Fi 7, with 4 dBi at 2.4 GHz and 6 dBi at 5 and 6 GHz. It has six RP-SMA plugs on 3 ft cables, is IP66 rated and includes wall and pole mounts for ceiling, wall, pole, enclosure or bolt installs.
Key Features
- Tri-band, Wi-Fi 6E / 7
- 4 / 6 / 6 dBi omni
- 6 x RP-SMA, 3 ft cables
- IP66 indoor / outdoor
- 50 W max
- Wall and pole mounts
Product Information
Brand: AccelTex Solutions
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.48 GHz), 6 dBi (for 5.15 - 5.85 GHz), 6 dBi (for 6 - 7.125 GHz)
Antenna Placement: Ceiling mountable, Enclosure, Indoor / outdoor, Pole mount, Threaded bolt mount, Wall-mountable
Antenna Compatibility: 802.11ax, 802.11be, Wi-Fi
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 6 x antenna - RP-SMA (plug)
Technical Information
Impedance: 50 ohm
Antenna Features: 360° horizontal beam width, 6 elements, IP66, VSWR < 2.0
Max Power: 50 watt
Physical Characteristics
Mounting Kit: Included
Materials: ABS plastic
Dimensions and Weight
Height: 2.8 inch
Width: 4.7 inch
Depth: 4.7 inch
Weight: 6.35 ounce
Included Items
Accessories Included: pole mount, Wall Mount
Cables: 6 x antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
