Product Information

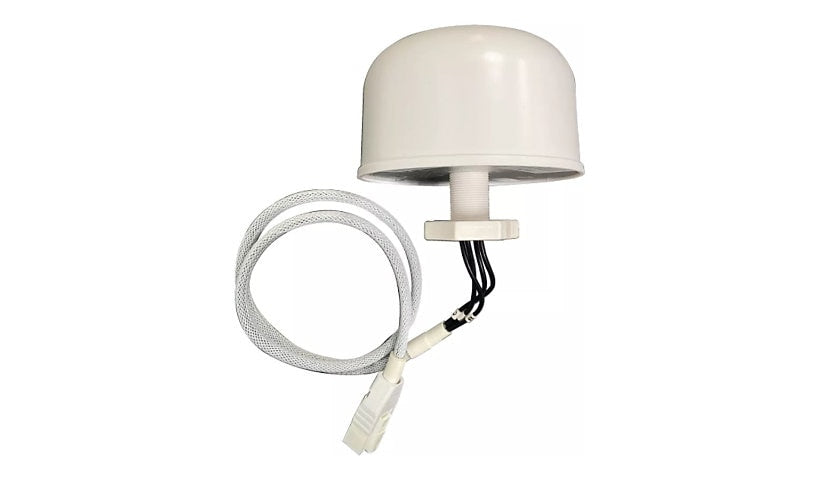

The AccelTex ATS-01062 is a compact 8 element omni antenna for Wi-Fi 6 and 6E, with 4 dBi at 2.4 GHz and 6 dBi at 5 and 6 GHz. It uses eight DART RF connectors on 35.8 in cables, is rated -40 to 149 °F and includes a wall and pole kit for ceiling, wall, pole, flush or bolt mounting.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 4 / 6 / 6 dBi omni, 360°
- 8 x DART connectors
- 35.8 in cables
- Indoor / outdoor, -40 to 149 °F
- Wall / pole kit included
Product Information
Brand: AccelTex Solutions
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.48 GHz), 6 dBi (for 5.1 - 5.85 GHz), 6 dBi (for 6 - 7.125 GHz)
Antenna Placement: Ceiling-mountable / wall-mountable, Flush mount, Indoor / outdoor, Pole mount, Threaded bolt mount
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.1 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Features: > 20 dB isolation, 100W max. input power, Vertical polarisation, Wind load 134 mph (216 km/h)
Connectivity
Antenna Cable Length: 35.8 inch
Connector Provided: 8 x RF connector DART
Technical Information
Impedance: 50 ohm
Antenna Form Type: Radome
Horizontal Beamwidth: 360°
Vertical Beamwidth: 105° (at 2.4 - 2.48 GHz), 70° (at 6 - 7.125 GHz), 75° (at 5.1 - 5.85 GHz)
Voltage Standing Wave Ratio (VSWR): <2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Width: 2.8 inch
Length: 4.7 inch
Weight: 7.05 ounce
Included Items
Package Content: Wall/pole mount kit
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
