Product Information

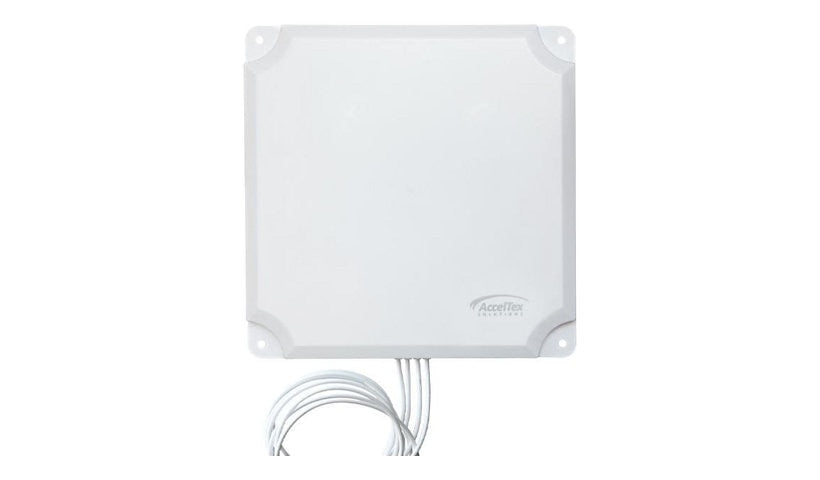

The AccelTex ATS-01087 is a high gain 4 element directional patch antenna for 2.4 and 5 GHz Wi-Fi, with 13 dBi and horizontal polarization. It has four RP-SMA plugs on 3 ft cables, is IP66 rated, handles up to 50 W and includes a mounting kit for wall or flush installs.
Key Features
- Dual band 2.4 / 5 GHz
- 13 dBi directional patch
- 4 x RP-SMA, 3 ft cables
- IP66 indoor / outdoor
- 50 W max
- Mounting kit included
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 13 dBi
Antenna Placement: Flush mount, Indoor / outdoor, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.485 GHz, 5.15 - 5.85 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Directional
Connectivity
Connectors: 4 x antenna - RP-SMA (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: 4 elements, Horizontal polarization, IP66, VSWR < 2.0:1
Max Power: 50 watt
Physical Characteristics
Mounting Kit: Included
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Height: 13.8 inch
Width: 13.8 inch
Depth: 2 inch
Weight: 2.49 lbs
Included Items
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
