Product Information

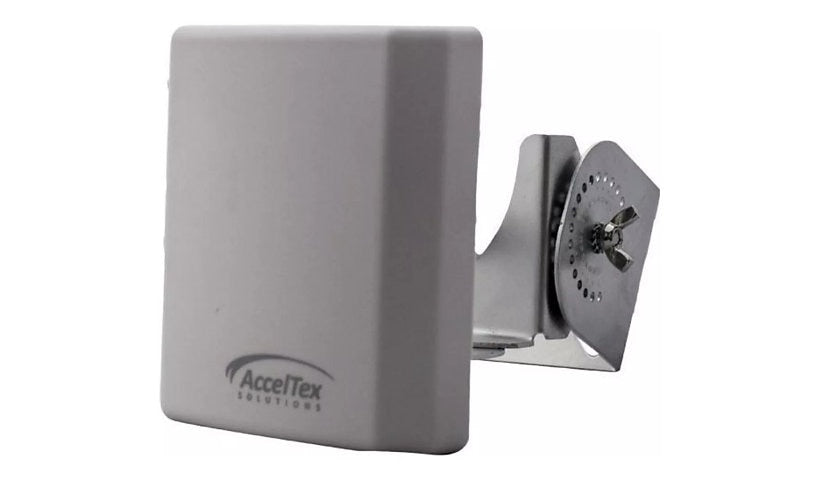

The AccelTex ATS-01099 is a compact 4 element patch antenna for 2.4 and 5 GHz Wi-Fi with 4 dBi and 7 dBi gain. It has four N-type leads on 3 ft cables, is IP66 rated and handles up to 100 W. Listed fits include Arista O-105E, Cisco 1572EAC/EC, Meraki MR66, MR74, MR84, MR86 and Mist AP61E.
Key Features
- Dual band 2.4 / 5 GHz
- 4 / 7 dBi patch
- 4 x N-type, 3 ft cables
- IP66 indoor / outdoor
- For Meraki, Cisco, Arista, Mist APs
- Flush, wall or pole mount
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Compatibility Specs: Arista O-105E ¦ Cisco Aironet 1572EAC, 1572EC ¦ Cisco Meraki MR66, MR74 Cloud Managed, MR84 Cloud Managed, MR86 ¦ Mist AP61E
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.5 GHz), 7 dBi (for 4.9 - 5.85 GHz)
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Surface mountable, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, Wi-Fi
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 4 x antenna - N connector
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: IP66, Vertical polarization, VSWR < 2.0:1
Max Power: 100 watt
Physical Characteristics
Materials: ASA plastic
Dimensions and Weight
Height: 4.7 inch
Width: 5.5 inch
Depth: 1.5 inch
Weight: 14.11 ounce
Included Items
Cables: 4 x antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
