Product Information

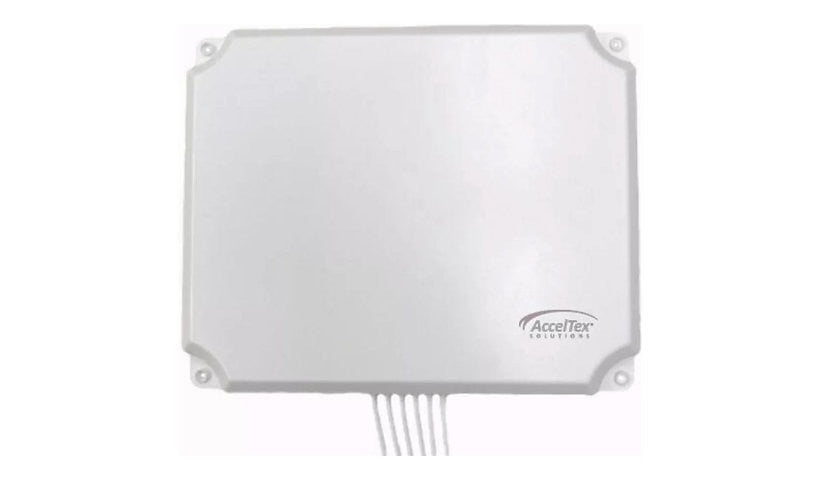

The Hubbell AccelTex ATS-01112 is a 6 element directional Wi-Fi patch antenna with 7 dBi at 2.4 to 2.485 GHz and 6 dBi at 5.15 to 5.85 GHz, three horizontal and three vertical elements and beams of 100 x 59 and 110 x 61 degrees. It has six N male leads of 35.8 inches, an ABS housing rated for 134 mph winds, works indoors or outdoors and mounts flush on a wall or with the included articulating bracket. It is listed for Arista O-235E, Cisco Catalyst 9124AXE and FortiAP 432F.
Key Features
- 6 element patch antenna
- 7 dBi 2.4, 6 dBi 5 GHz
- 6 N male, 35.8 in leads
- Articulating bracket included
- 134 mph wind rating
- Indoor or outdoor
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Compatibility Specs: Arista O-235E ¦ Cisco Catalyst 9124AXE ¦ Fortinet FortiAP 432F
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 6 dBi (for 5.15 - 5.85 GHz), 7 dBi (for 2.4 - 2.485 GHz)
Antenna Placement: Articulating mount, Flush mount, Indoor / outdoor, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.485 GHz, 5.15 - 5.85 GHz
Signaling Type: Wi-Fi
Features: 134mph (216km/h) rated wind velocity, 3 x horizontal polarization, 3 x vertical polarization
Connectivity
Antenna Cable Length: 35.8 inch
Connector Provided: 6 x N-Series connector male
Technical Information
Antenna Form Type: Patch
Horizontal Beamwidth: 100° (at 2.4 - 2.485 GHz), 110° (at 5.15 - 5.85 GHz)
Vertical Beamwidth: 59° (at 2.4 - 2.485 GHz), 61° (at 5.15 - 5.85 GHz)
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Height: 6.7 inch
Width: 12.6 inch
Depth: 1.4 inch
Weight: 23.98 ounce
Included Items
Package Content: Articulating bracket
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
