Product Information

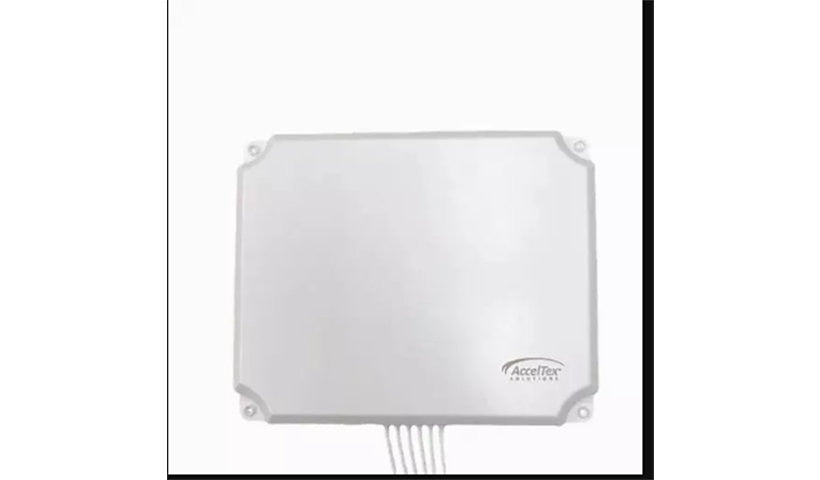

The Hubbell AccelTex ATS-01114 is a 12.6 inch directional Wi-Fi patch antenna for 2.4 and 5 GHz, with six elements (three horizontal, three vertical) and six RP-TNC plug leads of 35.8 inches. Gain is 7 dBi at 2.4 GHz and 6 dBi at 5 GHz, with beams of 100 x 59 degrees and 110 x 61 degrees. It works indoors or outdoors, is ABS with a 134 mph wind rating and mounts flush on a wall or on an articulating mount, with the mounting kit included. It is listed for the Cisco 3502e, Meraki MR46E and MR53E.
Key Features
- 6 element patch antenna
- 2.4 and 5 GHz, 7/6 dBi
- 6 RP-TNC leads, 35.8 in
- Indoor or outdoor
- 134 mph wind rating
- Mounting kit included
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 6 dBi (for 5.15 - 5.85 GHz), 7 dBi (for 2.4 - 2.485 GHz)
Antenna Placement: Articulating mount, Flush mount, Indoor / outdoor, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 GHz, 5 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Features: 17° Azimuth Half Power Beamwidth, 3 x horizontal polarization, 3 x vertical polarization, RPTNC connector, Wind load 134 mph (216 km/h)
Connectivity
Antenna Cable Length: 35.8 inch
Connector Provided: 6 x RP-TNC
Technical Information
Antenna Form Type: Patch
Horizontal Beamwidth: 100° (at 2.4 - 2.485 GHz), 110° (at 5.15 - 5.85 GHz)
Vertical Beamwidth: 59° (at 2.4 - 2.485 GHz), 61° (at 5.15 - 5.85 GHz)
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Mounting Kit: Included
Materials: ABS plastic
Dimensions and Weight
Height: 6.7 inch
Width: 12.6 inch
Depth: 1.4 inch
Weight: 23.98 ounce
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
