Product Information

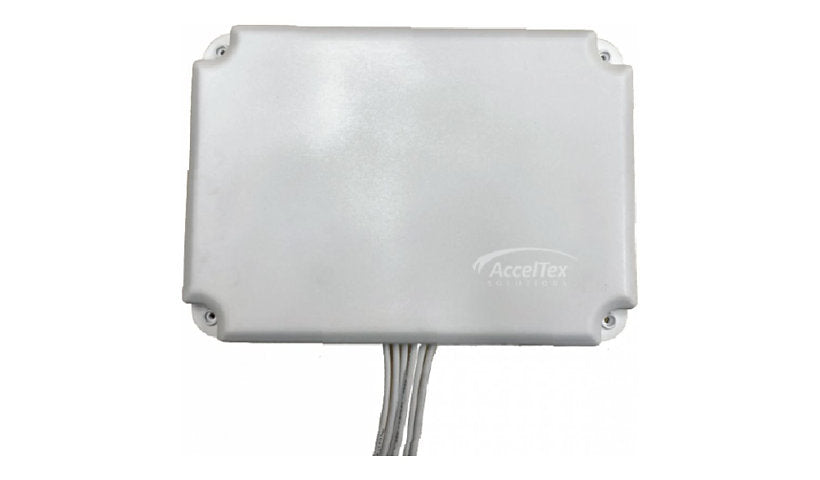

The AccelTex ATS-01120 is a 6 element directional patch antenna for 802.11n, ac and ax access points on 2.4 and 5 GHz, with 7 dBi gain and dual polarization. It is IP66 rated, has six N-type plugs on 3 ft cables and mounts flush, on a wall or on an articulating mount.
Key Features
- Dual band 2.4 / 5 GHz
- 7 dBi directional patch
- 6 elements, dual polarization
- 6 x N-type, 3 ft cables
- IP66 indoor / outdoor
- Silver finish
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Antenna Gain: 7 dBi
Antenna Placement: Articulating mount, Flush mount, Indoor / outdoor, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.485 GHz, 5.15 - 5.85 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Directional
Connectivity
Connectors: 6 x antenna - N connector (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: Horizontal polarization, IP66, Vertical polarization, VSWR = 1.5:1
Physical Characteristics
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Height: 8.7 inch
Width: 12.2 inch
Depth: 1.6 inch
Weight: 23.98 ounce
Included Items
Cables: 6 x antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
