Product Information

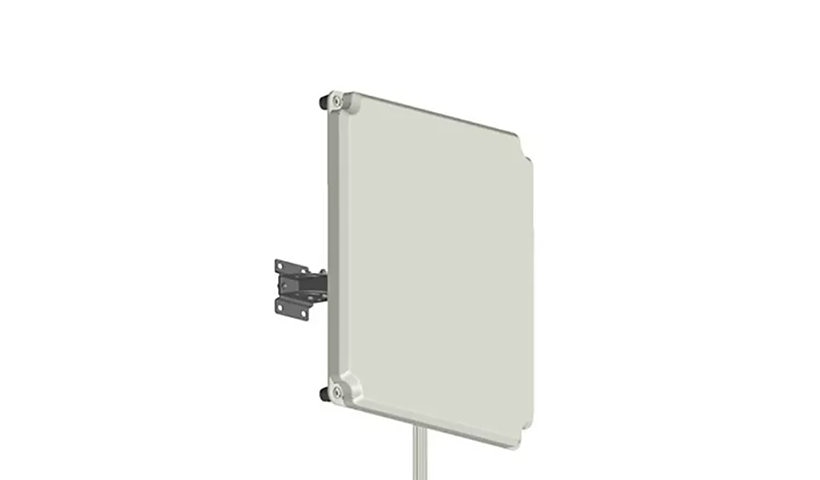

The AccelTex ATS-01145 is a high gain 8 element tri-band directional patch antenna for Wi-Fi 6E, with 9 dBi at 2.4 GHz and 11 dBi at 5 and 6 GHz and narrow 12° to 30° horizontal beams. It uses right angle DART connectors on 35.8 in cables, is rated -40 to 158 °F and mounts flush, on a wall or pole. One spec field also lists 13 dBi, so please confirm.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 9 / 11 / 11 dBi directional
- 12° to 30° horizontal beam
- Right angle DART connectors
- -40 to 158 °F
- Flush, wall or pole mount
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 11 dBi (for 5.15 - 5.85 GHz), 11 dBi (for 6 - 7.125 GHz), 13 dBi, 9 dBi (for 2.4 - 2.48 GHz)
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Features: > 30 dB isolation, 134mph (216km/h) rated wind velocity, 50W max. input power (per port), Vertical polarisation
Connectivity
Antenna Cable Length: 35.8 inch
Connector Provided: 1 x RF connector DART plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Horizontal Beamwidth: 12° (at 6 - 7.125 GHz), 15° (at 5.15 - 5.85 GHz), 30° (at 2.4 - 2.48 GHz)
Vertical Beamwidth: 110° (at 5.15 - 5.85 GHz), 110° (at 6 - 7.125 GHz), 120° (at 2.4 - 2.48 GHz)
Voltage Standing Wave Ratio (VSWR): <2.5
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 19.3 inch
Width: 19.3 inch
Depth: 2.4 inch
Weight: 8.82 lbs
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
