Product Information

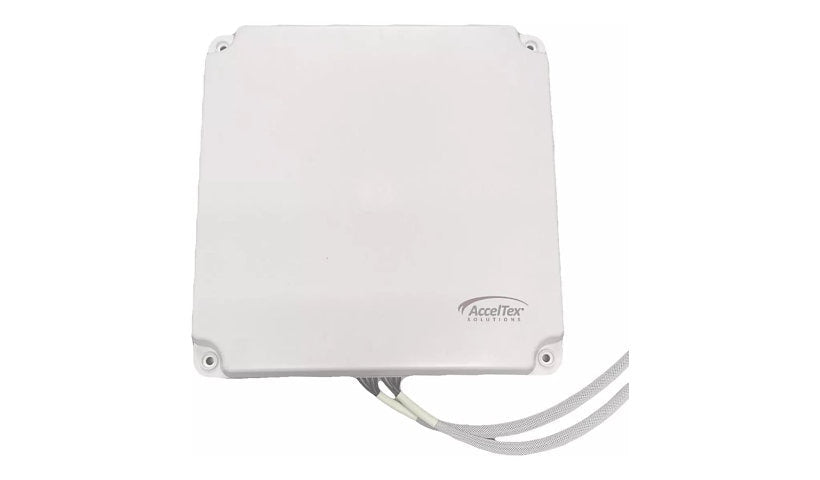

The AccelTex ATS-02587 is a directional tri-band patch antenna for 802.11ax access points on 2.4, 5 and 6 GHz, with 7 dBi gain. It uses eight DART connectors on 3 ft cables, handles up to 50 W and mounts flush or on a wall, indoors or out.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 7 dBi directional patch
- 8 x DART connectors
- 3 ft cables
- Indoor / outdoor
- Flush or wall mount
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Model: ATS-02587
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 7 dBi
Antenna Placement: Flush mount, Indoor / outdoor, Wall-mountable
Antenna Compatibility: 802.11ax, Wi-Fi
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Directional
Connectivity
Connectors: 8 x antenna - RF connector DART
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: Vertical polarization, VSWR < 1.5:1
Max Power: 50 watt
Physical Characteristics
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Height: 2 inch
Width: 15.4 inch
Depth: 15.4 inch
Included Items
Cables: Antenna cable - 3 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
