Product Information

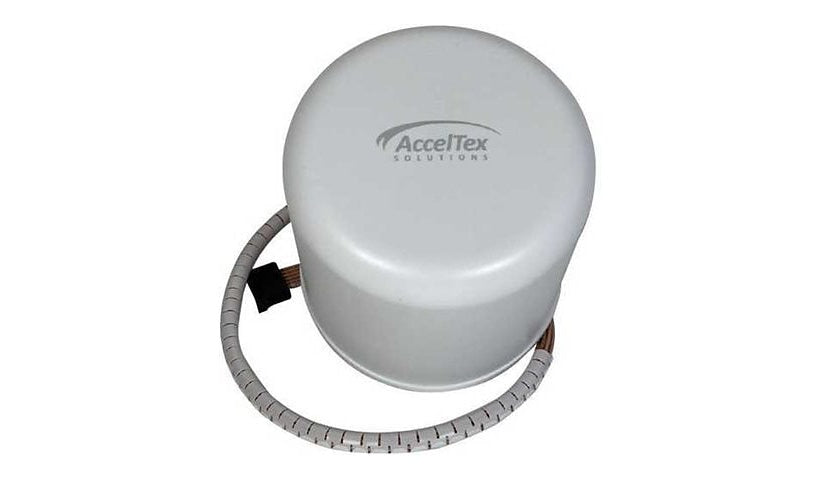

The Hubbell AccelTex ATS-02624 is an indoor 10 element omni radome antenna for 802.11ax on 2.4, 5 and 6 GHz, with 4 dBi at 2.4 GHz and 6 dBi at 5 and 6 GHz, vertical polarization and VSWR under 2.0. It is IP66 rated in an ABS housing, has ten MPC leads of 3 ft, and mounts flush, on a wall, surface or pole with the included wall and pole mounts.
Key Features
- 10 element omni antenna
- 2.4, 5 and 6 GHz
- 4 and 6 dBi gain
- 10 MPC leads, 3 ft
- IP66, ABS housing
- Wall and pole mounts included
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.48 GHz), 6 dBi (for 5.15 - 5.85 GHz), 6 dBi (for 6 - 7.125 GHz)
Antenna Placement: Flush mount, Indoor, Pole mount, Surface mountable, Wall-mountable
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.1 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 10 x antenna - MPC connector
Technical Information
Antenna Form Type: Radome
Antenna Features: 10 elements, IP66, Vertical polarization, VSWR < 2.0
Physical Characteristics
Mounting Kit: Included
Materials: ABS plastic
Dimensions and Weight
Height: 6.3 inch
Width: 6.5 inch
Depth: 6.5 inch
Weight: 23.98 ounce
Included Items
Accessories Included: pole mount, Wall Mount
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
