Product Information

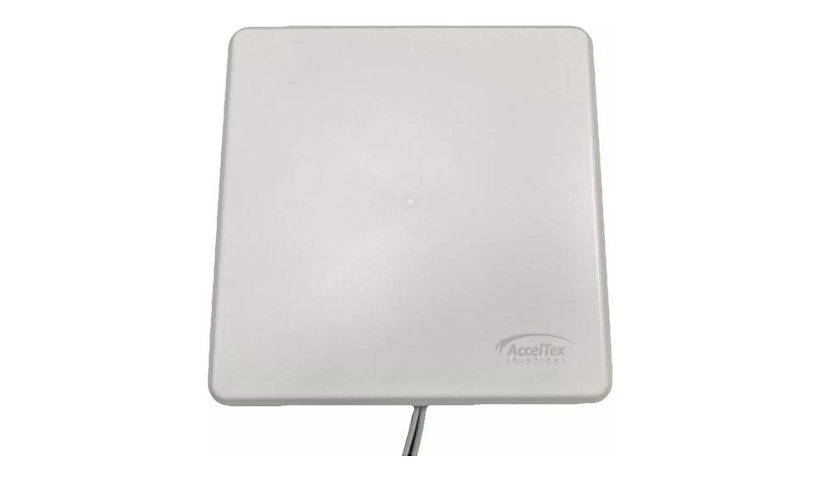

The AccelTex ATS-02691 is a high gain tri-band patch antenna for 802.11ax on 2.4, 5 and 6 GHz with 12 dBi and dual polarization. It uses a DART connector on 3 ft cables, is IP66 rated, handles up to 50 W and mounts flush or on a wall.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 12 dBi patch
- Dual polarization
- DART connector, 3 ft cables
- IP66 indoor / outdoor
- Flush or wall mount
Product Information
Brand: AccelTex Solutions
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 12 dBi
Antenna Placement: Flush mount, Indoor / outdoor, Wall-mountable
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: Antenna - RF connector DART
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: Horinzontal/vertical polarization, IP66, VSWR < 2.0
Max Power: 50 watt
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA)
Dimensions and Weight
Height: 19.3 inch
Width: 19.3 inch
Depth: 2.4 inch
Weight: 8.82 lbs
Included Items
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
