Product Information

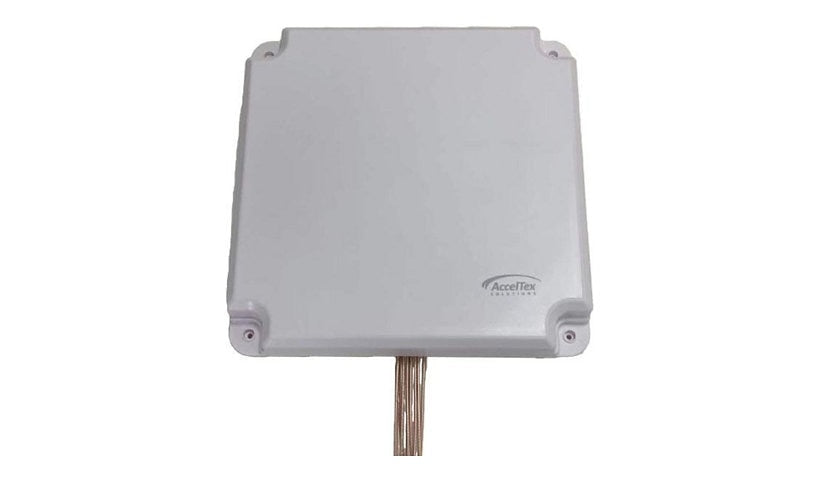

The Hubbell AccelTex ATS-02789 is an indoor directional 10 element patch antenna for 802.11ax Wi-Fi on 2.4, 5 and 6 GHz, with 8 dBi on every band. Beamwidths are 115 x 50 degrees at 2.4 GHz and 110 x 25 degrees at 5 and 6 GHz, with VSWR under 2.5. It has ten MPC plug leads (four plus six) of 35.8 inches and an ABS body, and mounts flush on a ceiling or wall or on a pole with the included articulating mount kit.
Key Features
- 10 element patch antenna
- 2.4, 5 and 6 GHz
- 8 dBi on all bands
- 10 MPC leads, 35.8 in
- Articulating mount included
- Indoor use
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Antenna Gain: 8 dBi (for 2.4 - 2.48 GHz), 8 dBi (for 5.15 - 5.85 GHz), 8 dBi (for 6 - 7.125 GHz)
Antenna Placement: Articulating mount, Ceiling-mountable / wall-mountable, Flush mount, Indoor, Pole mount
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6-7.125 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Connectivity
Antenna Cable Length: 35.8 inch
Connector Provided: 4 x MPC connector plug, 6 x MPC connector plug
Technical Information
Antenna Form Type: Patch
Horizontal Beamwidth: 110° (at 5.15 - 5.85 GHz), 110° (at 6 - 7.125 GHz), 115° (at 2.4 - 2.48 GHz)
Vertical Beamwidth: 25° (at 5.15 - 5.85 GHz), 25° (at 6 - 7.125 GHz), 50° (at 2.4 - 2.48 GHz)
Voltage Standing Wave Ratio (VSWR): <2.5
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 15.4 inch
Width: 15.4 inch
Depth: 2.2 inch
Weight: 23.98 ounce
Included Items
Package Content: Articulating wall/pole mount kit, Mount hardware
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
