Product Information

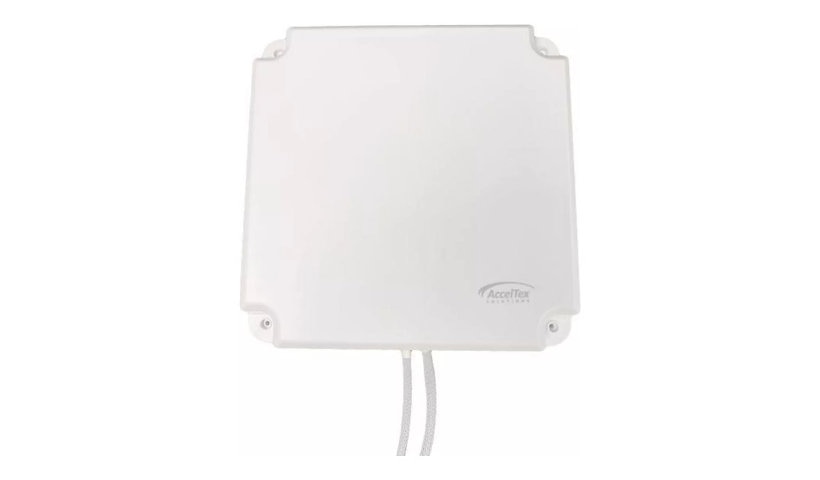

The AccelTex ATS-02840 is an 8 element tri-band directional patch antenna for Wi-Fi 6E, with 8 dBi gain, a 110° to 115° horizontal beam and a 25° to 50° vertical beam. It uses eight DART connectors on 35.8 in cables, is rated -40 to 158 °F and includes an articulating arm.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 8 dBi, 8 elements
- 110° to 115° horizontal beam
- 8 x DART, 35.8 in cables
- -40 to 158 °F
- Articulating arm included
Product Information
Brand: AccelTex Solutions
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 8 dBi
Antenna Placement: Articulating mount, Ceiling-mountable / wall-mountable, Flush mount, Indoor / outdoor
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Features: > 30 dB isolation, 4x4 MiMo function, 50W max. input power (per port), Wind load 134 mph (216 km/h)
Connectivity
Antenna Cable Length: 35.8 inch
Connector Provided: 8 x RF connector DART
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Horizontal Beamwidth: 110° (at 5.15 - 5.85 GHz), 110° (at 6 - 7.125 GHz), 115° (at 2.4 - 2.48 GHz)
Vertical Beamwidth: 25° (at 5.15 - 5.85 GHz), 25° (at 6 - 7.125 GHz), 50° (at 2.4 - 2.48 GHz)
Voltage Standing Wave Ratio (VSWR): <2.5
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 1.4 inch
Width: 13 inch
Length: 1 ft
Weight: 2.2 lbs
Included Items
Package Content: Articulating arm
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
