Product Information

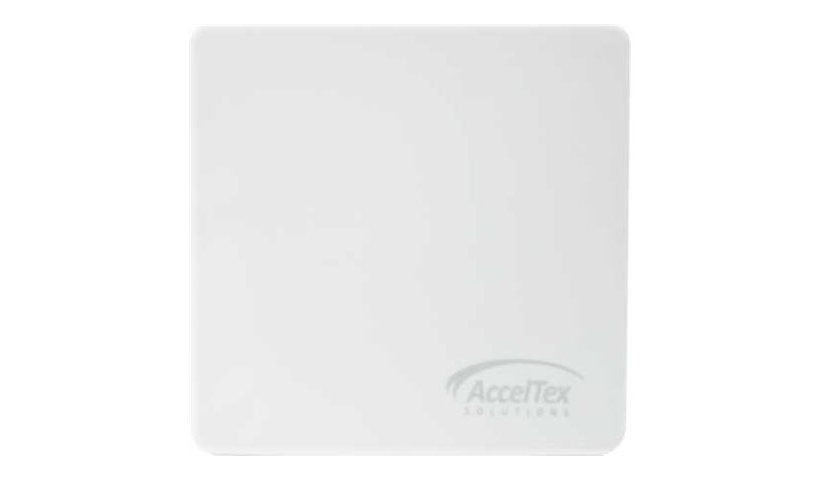

The Hubbell AccelTex ATS-03019 is a 4 element dual band Wi-Fi patch antenna with 8 dBi at 2.4 to 2.5 GHz and 10 dBi at 4.9 to 5.85 GHz, horizontal and vertical polarization and VSWR under 2.0:1. It is direct grounded, IP66 rated in an ASA housing, and suits 802.11n, ac and ax APs indoors or outdoors. It mounts flush on a wall or surface or on a pole with the included kit, and has four 3 ft leads with N connectors.
Key Features
- 4 element patch antenna
- 8 dBi 2.4 GHz, 10 dBi 5 GHz
- H and V polarization
- IP66, ASA housing
- 4 x 3 ft N leads
- Mounting kit included
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 10 dBi (for 4.9 - 5.85 GHz), 8 dBi (for 2.4 - 2.5 GHz)
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Surface mountable, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 4 x antenna - N connector
Technical Information
Antenna Form Type: Patch
Antenna Features: 4 elements, Direct grounded, Horinzontal/vertical polarization, IP66, VSWR < 2.0:1
Physical Characteristics
Mounting Kit: Included
Materials: ASA plastic
Dimensions and Weight
Height: 6.3 inch
Width: 6.3 inch
Depth: 1.9 inch
Weight: 14.11 ounce
Included Items
Cables: 4 x antenna cable - 3 ft
Warranty
Service Activation: No
