Product Information

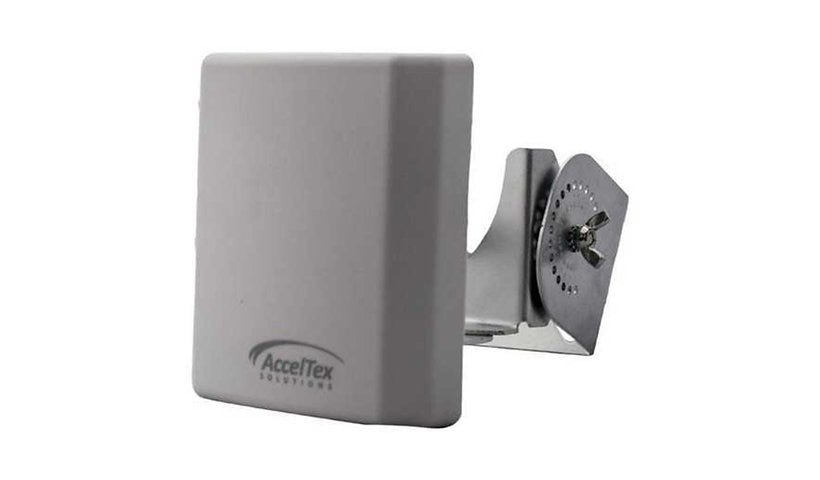

The AccelTex ATS-03021 is a 6 element directional patch antenna for 2.4 and 5 GHz Wi-Fi, with 8 dBi at 2.4 GHz and 10 dBi at 5 GHz and 45° to 65° beams. It has six connectors on 36 in cables, a gray ASA housing rated -40 to 149 °F and an included mounting kit. The title says RP-SMA V2 plugs while the spec lists RP-TNC, so please confirm.
Key Features
- Dual band 2.4 / 5 GHz
- 8 / 10 dBi directional patch
- 6 elements, 36 in cables
- RP-SMA or RP-TNC (confirm)
- -40 to 149 °F
- Mounting kit included
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Antenna Gain: 10 dBi (for 4.9 - 5.85 GHz), 8 dBi (for 2.4 - 2.5 GHz)
Antenna Placement: Articulating mount, Indoor / outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Features: > 20 dB isolation, 100W max. input power, 130mph (210km/h) rated wind velocity, 3 x horizontal polarization, 3 x vertical polarization, DC-grounded, RPTNC connector
Connectivity
Antenna Cable Length: 36 inch
Connector Provided: 6 x RP-TNC plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Horizontal Beamwidth: 45° (at 4.9 - 5.85 GHz), 55° (at 2.4 - 2.5 GHz)
Vertical Beamwidth: 45° (at 4.9 - 5.85 GHz), 65° (at 2.4 - 2.5 GHz)
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Mounting Kit: Included
Materials: ASA plastic
Dimensions and Weight
Height: 8.1 inch
Width: 7 inch
Depth: 1.8 inch
Weight: 17.64 ounce
Certifications and Listing
Compliant Standards: IP66
Warranty
Service Activation: No
