Product Information

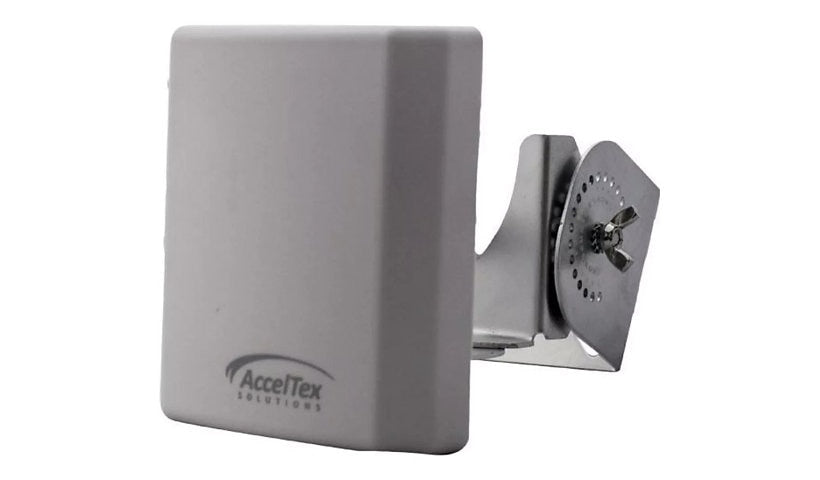

The AccelTex ATS-03022 is a 6 element directional patch antenna for 2.4 and 5 GHz Wi-Fi, with 8 dBi and 10 dBi gain and 45° to 65° beams. It has six N-type male V2 plugs on 36 in cables, a gray ASA housing rated -40 to 149 °F, and includes an articulating wall and pole kit plus a threaded bolt and nut.
Key Features
- Dual band 2.4 / 5 GHz
- 8 / 10 dBi directional patch
- 6 x N-type male, 36 in cables
- Indoor / outdoor
- -40 to 149 °F
- Articulating kit + bolt mount
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Antenna Gain: 10 dBi (for 4.9 - 5.85 GHz), 8 dBi (for 2.4 - 2.5 GHz)
Antenna Placement: Articulating mount, Indoor / outdoor, Pole mount, Threaded bolt mount, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11ax, 802.11n
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Features: 100W max. input power, 130mph (210km/h) rated wind velocity, 3 x horizontal polarization, 3 x vertical polarization
Connectivity
Antenna Cable Length: 36 inch
Connector Provided: 6 x N-Series connector male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Horizontal Beamwidth: 45° (at 4.9 - 5.85 GHz), 55° (at 2.4-2.5 GHz)
Vertical Beamwidth: 45° (at 4.9 - 5.85 GHz), 65° (at 2.4 - 2.5 GHz)
Voltage Standing Wave Ratio (VSWR): <2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA)
Dimensions and Weight
Height: 8.1 inch
Width: 7 inch
Depth: 1.8 inch
Weight: 14.11 ounce
Included Items
Package Content: Articulating wall/pole mount kit, Threaded bolt with nut
Certifications and Listing
Compliant Standards: IP66
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
