Product Information

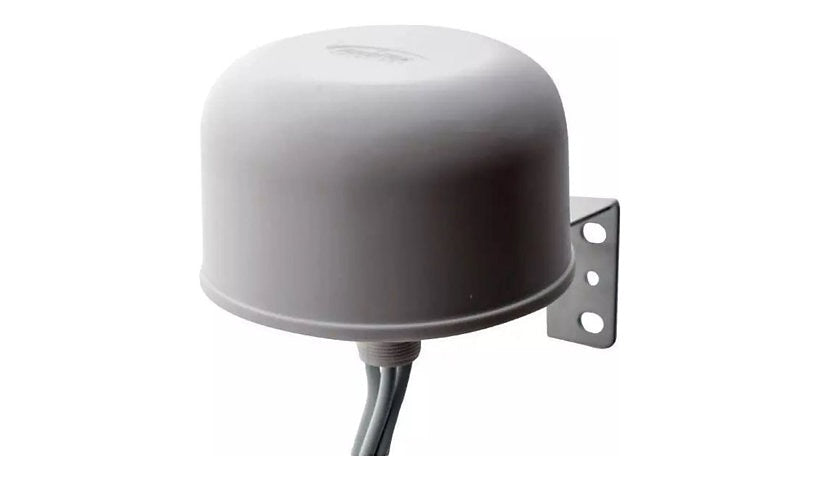

The AccelTex ATS-03115 is a compact 8 element omni radome antenna for Wi-Fi 6E, with 4 dBi at 2.4 GHz and 6 dBi at 5 and 6 GHz. It has eight N-type plugs on 3 ft cables, is IP66 rated, handles up to 100 W and includes wall and pole mounts plus bolt mounting.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 4 / 6 / 6 dBi omni
- 8 x N-type, 3 ft cables
- IP66 indoor / outdoor
- 100 W max
- Wall, pole or bolt mount
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.48 GHz), 6 dBi (for 5.1 - 5.85 GHz), 6 dBi (for 6 - 7.125 GHz)
Antenna Placement: Indoor / outdoor, Pole mount, Threaded bolt mount, Wall-mountable
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.1 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 8 x antenna - N connector (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Radome
Antenna Features: IP66, Vertical polarization, VSWR < 2.0:1
Max Power: 100 watt
Physical Characteristics
Mounting Kit: Included
Materials: ABS plastic
Dimensions and Weight
Height: 2.8 inch
Width: 4.7 inch
Depth: 4.7 inch
Weight: 6.35 ounce
Included Items
Accessories Included: pole mount, Wall Mount
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
