Product Information

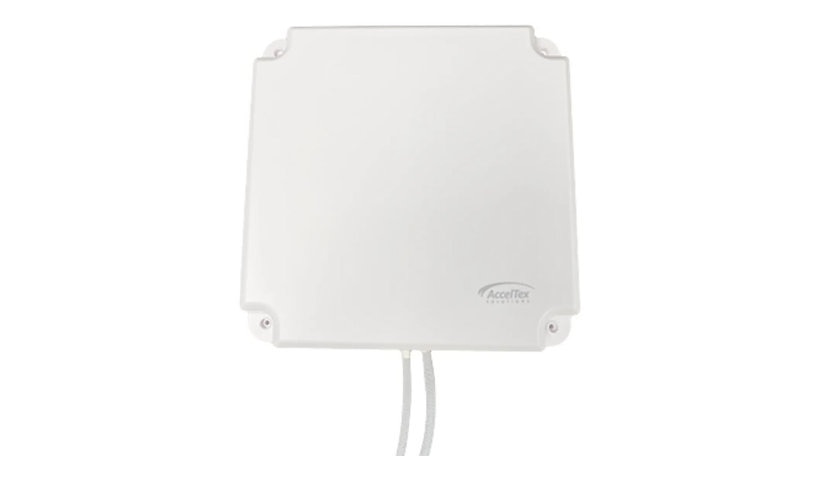

The AccelTex ATS-03262 is a tri-band patch antenna for Wi-Fi 6E access points, giving 8 dBi at 2.4 GHz and 10 dBi at 5 and 6 GHz with dual polarization. It is IP66 rated, has six N-type plugs on 3 ft cables, handles up to 50 W and includes a kit for flush, wall or pole mounting.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 8 / 10 / 10 dBi patch
- 6 x N-type, 3 ft cables
- IP66 indoor / outdoor
- 50 W max
- Mounting kit included
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 10 dBi (for 5.15 - 5.85 GHz), 10 dBi (for 6 - 7.125 GHz), 8 dBi (for 2.4 - 2.48 GHz)
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 6 x antenna - N connector (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: Horizontal polarization, IP66, Vertical polarization, VSWR = 2.0
Max Power: 50 watt
Physical Characteristics
Mounting Kit: Included
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Height: 15.4 inch
Width: 15.4 inch
Depth: 1.6 inch
Weight: 23.98 ounce
Included Items
Cables: 6 x antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
