Product Information

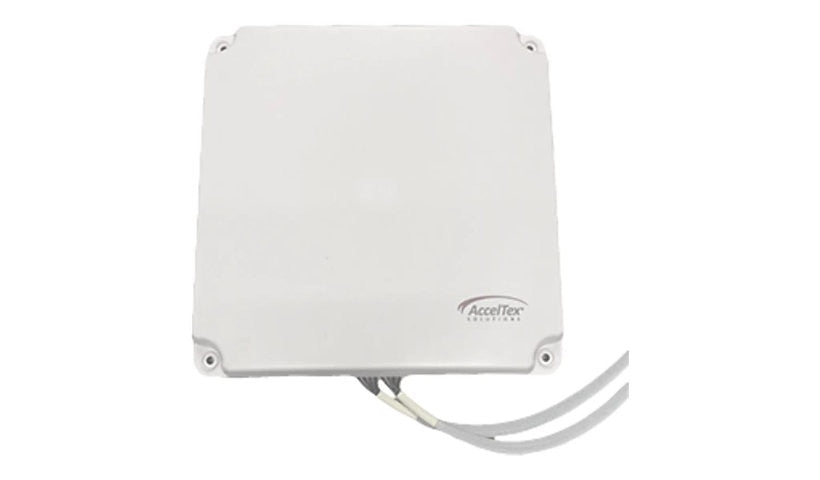

The Hubbell AccelTex ATS-03279 is a tri band Wi-Fi 6E patch antenna with 9 dBi at 2.4 to 2.48 GHz and 11 dBi at 5.15 to 5.85 GHz and 6 to 7.125 GHz, vertical polarization and VSWR under 2.5:1. It is IP66 rated in an ASA housing for indoor or outdoor use, mounts flush on a wall or on an articulating mount, and has six 3 ft leads with N plug connectors.
Key Features
- Tri band patch antenna
- 9 dBi and 11 dBi
- 2.4, 5 and 6 GHz
- IP66, ASA housing
- 6 x 3 ft N plug leads
- Flush or articulating mount
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 11 dBi (for 5.15 - 5.85 GHz), 11 dBi (for 6 - 7.125 GHz), 9 dBi (for 2.4 - 2.48 GHz)
Antenna Placement: Articulating mount, Flush mount, Indoor / outdoor, Wall-mountable
Antenna Compatibility: 802.11ax
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 6 x antenna - N connector (plug)
Technical Information
Antenna Form Type: Patch
Antenna Features: IP66, Vertical polarization, VSWR < 2.5:1
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA)
Dimensions and Weight
Height: 19.3 inch
Width: 19.3 inch
Depth: 2.4 inch
Weight: 8.82 lbs
Included Items
Cables: 6 x antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
