Product Information

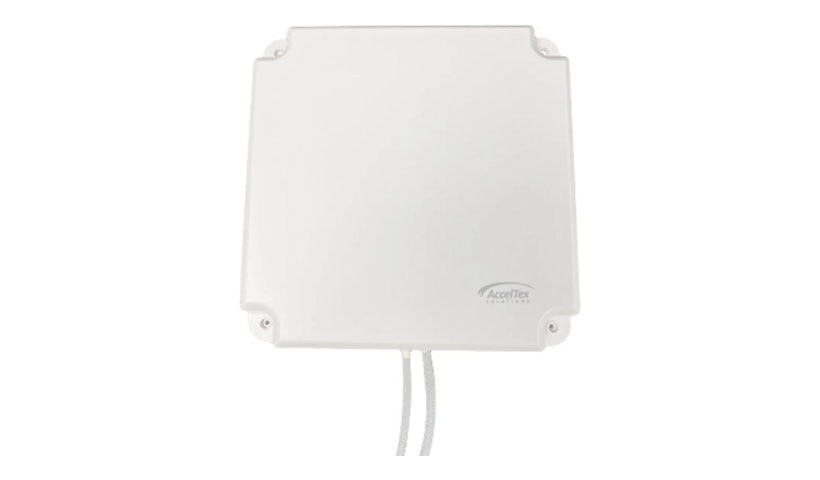

The AccelTex ATS-03286 is a 6 element tri-band directional patch antenna for Wi-Fi 6E, with 4 dBi at 2.4 GHz and 7 dBi at 5 and 6 GHz. It has six RP-SMA connectors on 3 ft cables, is IP66 rated, handles up to 50 W and includes wall and pole mounts.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 4 / 7 / 7 dBi directional
- 6 x RP-SMA, 3 ft cables
- IP66 indoor / outdoor
- 50 W max
- Wall and pole mounts
Product Information
Brand: AccelTex Solutions
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.48 GHz), 7 dBi (for 5.15 - 5.85 GHz), 7 dBi (for 6 - 7.125 GHz)
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Surface mountable, Wall-mountable
Antenna Compatibility: 802.11ax, Wi-Fi
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Directional
Connectivity
Connectors: 6 x antenna - RP-SMA
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: 6 elements, IP66, Vertical polarization, VSWR < 2.0
Max Power: 50 watt
Physical Characteristics
Mounting Kit: Included
Materials: ABS plastic
Dimensions and Weight
Height: 11.8 inch
Width: 11.8 inch
Depth: 1.9 inch
Weight: 23.98 ounce
Included Items
Accessories Included: pole mount, Wall Mount
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
