Product Information

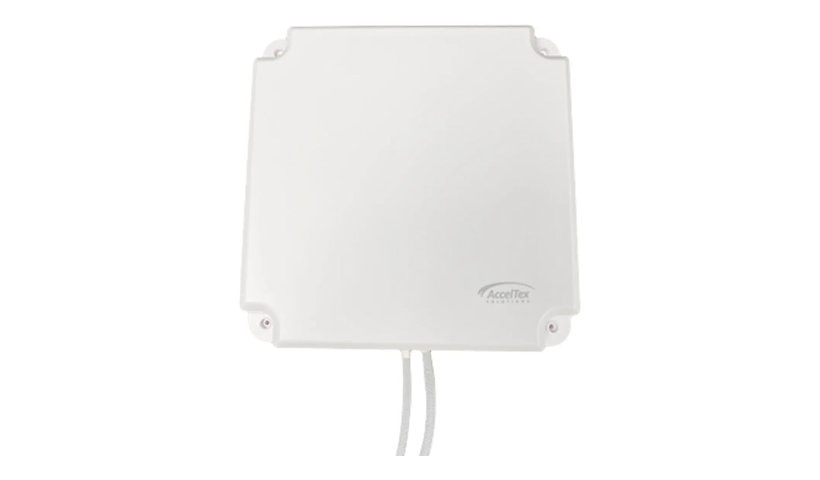

The AccelTex ATS-03287 is a tri-band directional patch antenna for Wi-Fi 6E and Wi-Fi 7 outdoor installs, with 6 dBi gain and a 70° by 70° beam. It is rated -40 to 158 °F with RP-SMA connections on 35.8 in cables. The title says 6 element with RP-SMA plugs while the spec lists one RP-SMA, so please confirm.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 6 dBi directional patch
- 70° x 70° beam
- RP-SMA (confirm count)
- Wi-Fi 6E / Wi-Fi 7
- -40 to 158 °F
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 6 dBi
Antenna Placement: Outdoor
Antenna Compatibility: 802.11ax, 802.11be
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Connectivity
Antenna Cable Length: 35.8 inch
Connector Provided: 1 x RP-SMA male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Horizontal Beamwidth: 70°
Vertical Beamwidth: 70°
Voltage Standing Wave Ratio (VSWR): 1.5:1 - 2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 11.8 inch
Width: 11.8 inch
Depth: 2.4 inch
Weight: 23.98 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
