Product Information

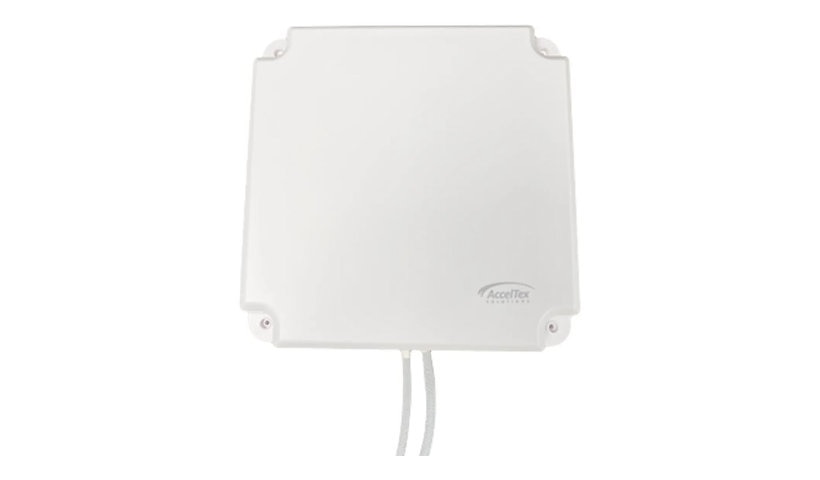

The AccelTex ATS-03289 is a tri-band patch antenna for Wi-Fi 6E and Wi-Fi 7 (802.11ax and be), with 8 dBi gain across 2.4, 5 and 6 GHz and dual polarization. It has six RP-SMA plugs on 3 ft cables, is IP66 rated and includes wall and pole mounts.
Key Features
- Tri-band, Wi-Fi 6E / 7
- 8 dBi patch
- 6 x RP-SMA, 3 ft cables
- Dual polarization
- IP66 indoor / outdoor
- Wall and pole mounts
Product Information
Brand: AccelTex
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 8 dBi
Antenna Placement: Indoor / outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ax, 802.11be, Wi-Fi
Frequency Range: 2.4 - 2.48 GHz, 5.1 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 6 x antenna - RP-SMA (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: Horizontal polarization, IP66, Vertical polarization, VSWR < 2.5:1
Max Power: 50 watt
Physical Characteristics
Mounting Kit: Included
Materials: ABS plastic
Dimensions and Weight
Height: 13 inch
Width: 13 inch
Depth: 1.4 inch
Weight: 23.98 ounce
Included Items
Accessories Included: pole mount, Wall Mount
Cables: 6 x antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
