Product Information

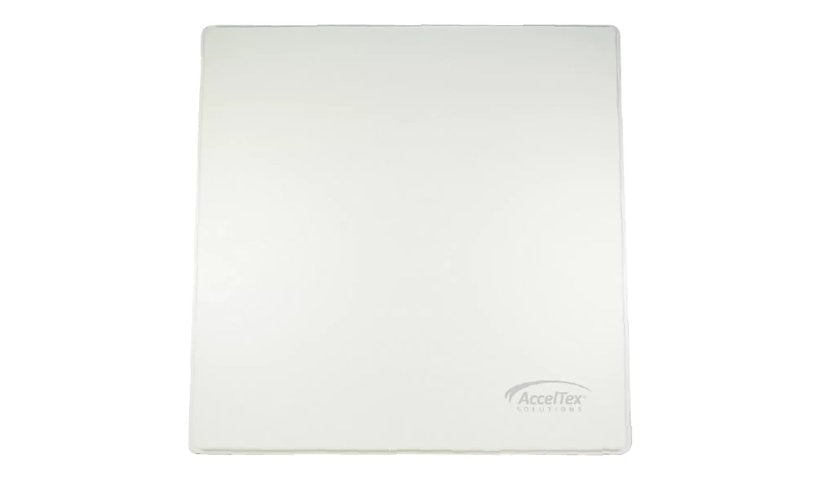

The AccelTex ATS-03412 is a high gain 6 element tri-band patch antenna with dual polarization, giving 13 dBi at 2.4 GHz and 15 dBi at 5 and 6 GHz. It has six N-type plugs on 3 ft cables, an IP67 housing about 23.6 in square, and includes wall and pole mounts.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 13 / 15 / 15 dBi patch
- 6 x N-type, 3 ft cables
- Dual polarization
- IP67 rated
- Wall and pole mounts
Product Information
Brand: AccelTex Solutions
Manufacturer: Hubbell Premise Wiring
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 13 dBi (for 2.4 - 2.48 GHz), 15 dBi (for 5.15 - 5.85 GHz), 15 dBi (for 6 - 7.125 GHz)
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Surface mountable, Wall-mountable
Antenna Compatibility: 802.11ax, Wi-Fi
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Directional
Connectivity
Connectors: 6 x antenna - N connector (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: 6 elements, Horinzontal/vertical polarization, IP67, VSWR < 2.0
Physical Characteristics
Mounting Kit: Included
Materials: ABS plastic
Dimensions and Weight
Height: 23.6 inch
Width: 23.6 inch
Depth: 1.6 inch
Weight: 23.98 ounce
Included Items
Accessories Included: pole mount, Wall Mount
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
