Product Information

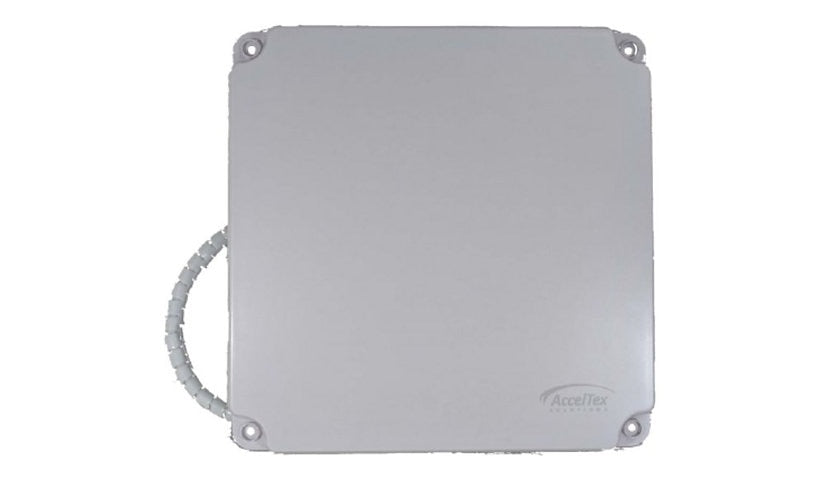

The AccelTex ATS-03951 is a 14 element dual polarized patch antenna for Wi-Fi 6E and Wi-Fi 7, with 8 dBi at 2.4 GHz and 10 dBi at 5 and 6 GHz. It uses MPC multi port connectors, is IP66 rated and includes a mounting kit for ceiling, wall, pole, flush, surface or enclosure installs. The listed cable length (298 ft) looks wrong, so please confirm.
Key Features
- Tri-band, Wi-Fi 6E / 7
- 8 / 10 / 10 dBi patch
- 14 elements, dual polarization
- MPC multi port connector
- IP66 indoor / outdoor
- Mounting kit included
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Antenna Gain: 10 dBi (for 5.15 - 5.85 GHz), 10 dbi (for 5.925 - 7.125 GHz), 8 dBi (for 2.4 - 2.48 GHz)
Antenna Placement: Ceiling-mountable / wall-mountable, Enclosure, Flush mount, Indoor / outdoor, Pole mount, Surface mountable
Antenna Compatibility: 802.11ax, 802.11be
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 5.925 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 14 x antenna - MPC connector
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: 14 elements, Horinzontal/vertical polarization, IP66, VSWR < 2.0:1
Physical Characteristics
Mounting Kit: Included
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Height: 15.4 inch
Width: 15.4 inch
Depth: 2.2 inch
Weight: 2.87 lbs
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
