Product Information

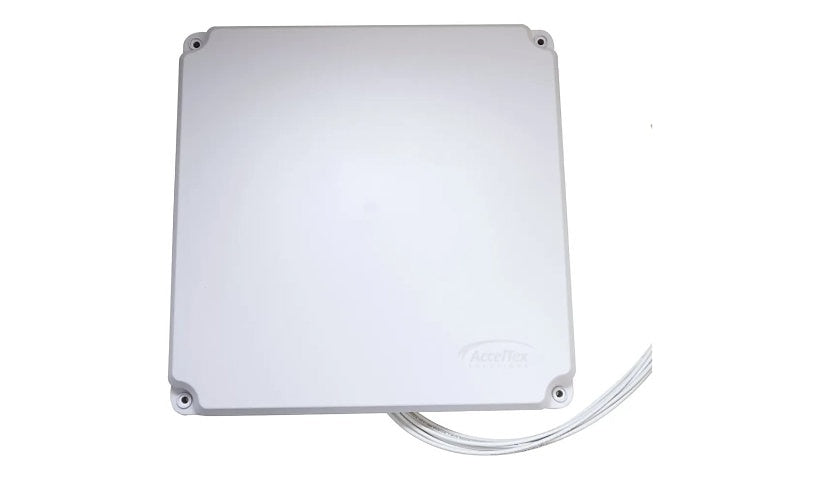

The Hubbell AccelTex ATS-03952 is a 14 element directional patch antenna for 802.11ax and 802.11be on 2.4, 5 and 5.925 to 7.125 GHz, with 8 dBi gain and vertical polarization. Horizontal beamwidth is 105 to 110 degrees and vertical 25 to 50 degrees depending on band, with a 25 x 115 degree nominal pattern. It has MPC plug connectors, works indoors or outdoors and mounts flush, on a surface or on a pole.
Key Features
- 14 element patch antenna
- 2.4, 5 and 6 GHz
- 8 dBi gain
- Wi-Fi 6E and Wi-Fi 7
- MPC connectors
- Flush, surface or pole
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Antenna Gain: 8 dBi
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Surface mountable
Antenna Compatibility: 802.11ax, 802.11be
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 5.925 - 7.125 GHz
Signaling Type: Wi-Fi
Features: Vertical polarisation
Connectivity
Connector Provided: MPC connector plug
Technical Information
Antenna Form Type: Patch
Horizontal Beamwidth: 105°, 110°
Vertical Beamwidth: 25°, 30°, 50°
Dimensions and Weight
Height: 19.3 inch
Width: 19.3 inch
Depth: 2.2 inch
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
