Product Information

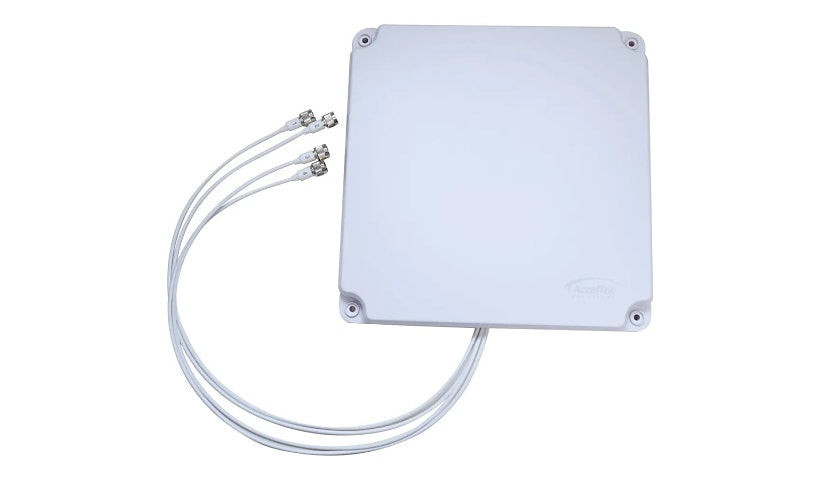

The AccelTex ATS-04153 is a 4 element tri-band patch antenna for Wi-Fi 6E and Wi-Fi 7, with 6 to 7 dBi gain across 2.4, 5 and 6 GHz. It has four N-type plugs on 3 ft cables, an IP67 ASA housing and an included mounting kit for flush, wall or pole installs.
Key Features
- Tri-band, Wi-Fi 6E / 7
- 6 to 7 dBi patch
- 4 x N-type, 3 ft cables
- IP67 indoor / outdoor
- ASA housing
- Mounting kit included
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 6 dBi, 7 dBi
Antenna Placement: Flush mount, Indoor / outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ax, 802.11be
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 4 x Wi-Fi antenna - N connector (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Antenna Features: 4 elements, IP67, Vertical polarization, VSWR < 2.0
Physical Characteristics
Mounting Kit: Included
Materials: ASA plastic
Dimensions and Weight
Height: 2.2 inch
Width: 15.4 inch
Depth: 15.4 inch
Weight: 23.98 ounce
Included Items
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
