Product Information

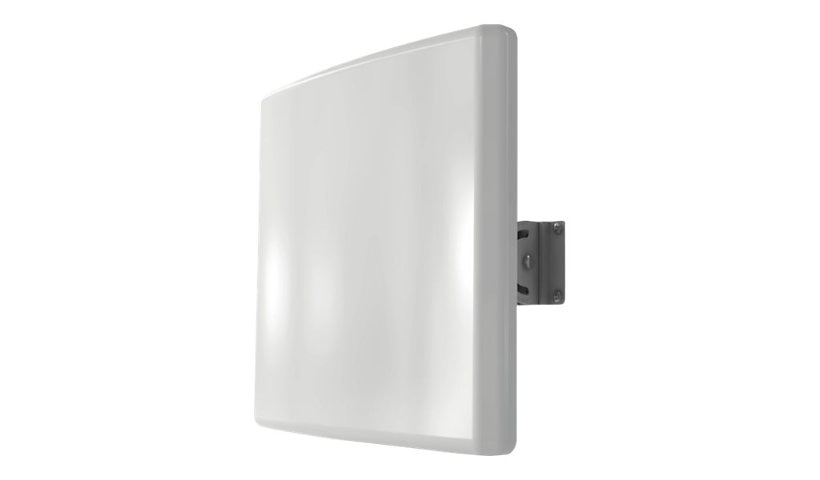

The AccelTex ATS-OHDP-245-13 is a 4 element high density patch antenna for 2.4 and 5 GHz with 13 dBi gain, dual polarization and a narrower beam than typical patches. It has four N-style leads, a -40 to 149 °F range and an articulating wall or pole mount. The quick specs say N jack while the spec says N plug, so please confirm.
Key Features
- Dual band 2.4 / 5 GHz
- 13 dBi high density patch
- 4 elements, dual polarization
- 4 x N-style (confirm jack / plug)
- -40 to 149 °F
- Articulating wall / pole mount
Product Information
Brand: AccelTex
Manufacturer: AccelTex
Product Line: AccelTex Solutions
Model: 4 Element High Density Patch Antenna With N-Style
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 13 dBi
Antenna Placement: Indoor, Outdoor, Pole mount, Wall-mountable
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.85 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Connectivity
Connector Provided: N connector plug
Technical Information
Impedance: 50 ohm
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Dimensions and Weight
Height: 13.8 inch
Width: 13.8 inch
Depth: 1.8 inch
Weight: 28.22 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
