Product Information

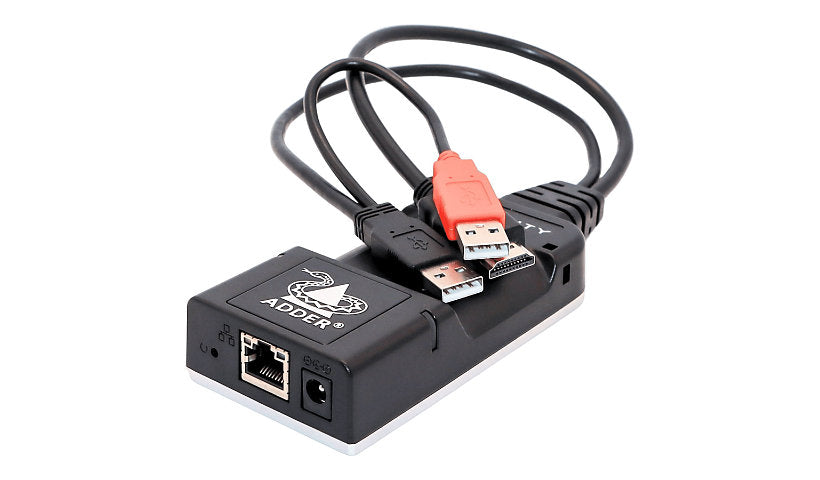

The AdderLink INFINITY 102T is a KVM, audio and USB extender over IP, a KVM device rather than a network tester. This transmitter has a DisplayPort connector, 2 USB 2.0 ports and a gigabit RJ-45 port and reaches up to 328 ft. It supports multicasting across the network, USB True Emulation, EDID management, 8-bit deep color, LPCM and bidirectional audio. It is USB powered at 3 W, has an aluminum and ABS housing and comes with a 1 ft cable.
Key Features
- KVM over IP transmitter
- DisplayPort and 2 USB
- Gigabit RJ-45 link
- Up to 328 ft
- Multicast support
- USB powered, 3 W
Product Information
Brand: Adder
Manufacturer: Adder
Product Line: AdderLink INFINITY
Model: 102T
Product Type: KVM / audio / USB extender
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Cable Type: Ethernet 1000Base-T
Max Transfer Distance: 328 ft
Features: 8-bit Deep Color support, Aluminum/ABS housing, Bi-directional audio, EDID Management, LPCM support, Uni-directional, USB powered
Connectivity
Interface Provided: 1 x DisplayPort male, 1 x Ethernet 1000Base-T - RJ-45 female, 2 x USB 2.0 - Type A
Power
Power Consumption Operational: 3 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Height (Rack Units): 0
Dimensions and Weight
Height: 1 inch
Width: 2.2 inch
Depth: 4.3 inch
Weight: 7.05 ounce
Included Items
Cables: 1 x keyboard / mouse / video / audio / USB cable - 1 ft
Certifications and Listing
Compliant Standards #2: ANSI C63.4, China RoHS, CISPR 35/EN 55035, CISPR32/EN55032, CP65, cULus, EN 61000-3-2, EN 61000-3-3, EU REACH, FCC, FCC Part 15 B, ICES, ICES 003, IEC/EN 63000, Plug and Play, RCM, Telcordia SR-332 Issue 4, UK REACH, UKCA
Compliant Standards: USB 2.0
Compliant Standards: ANSI C63.4, China RoHS, CISPR 35/EN 55035, CISPR32/EN55032, CP65, cULus, EN 61000-3-2, EN 61000-3-3, EU REACH, FCC, FCC Part 15 B, ICES, ICES 003, IEC/EN 63000, Plug and Play, RCM, Telcordia SR-332 Issue 4, UK REACH, UKCA
