Product Information

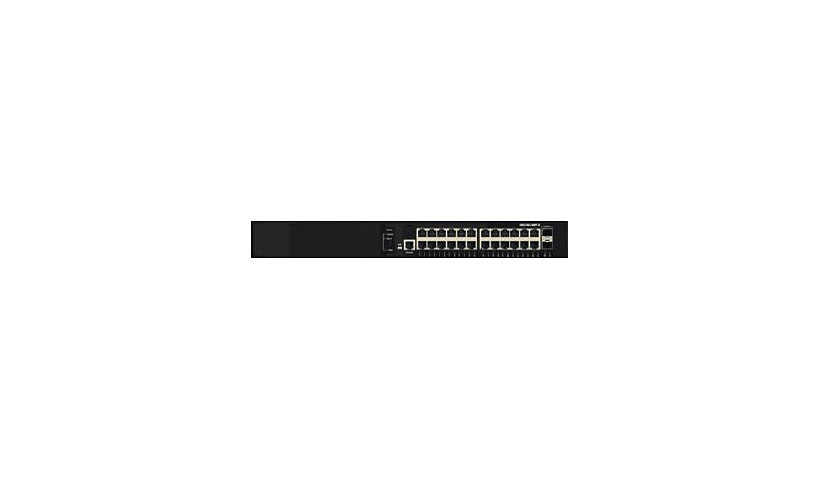

ADTRAN's NetVanta 1560-24 is a fully managed Layer 3 switch with 24 Gigabit PoE+ ports and 10G SFP+ uplinks. It has a 370 W PoE budget and 176 Gbps of forwarding bandwidth, with 802.1x, ACLs, ARP inspection and DHCP snooping.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 10G SFP+ uplinks
- 370 W PoE budget
- 176 Gbps forwarding bandwidth
- Layer 3, 802.1x, ACL
- Rack mount
Product Information
Brand: ADTRAN
Manufacturer: ADTRAN
Product Line: ADTRAN NetVanta
Model: 1560-24
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, JSON-RPC, NTP, RMON, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Performance: Forwarding bandwidth: 176 Gbps
Capacity: ARP entries: 1000, IPv4 routes (static): 128, IPv6 routes (static): 128, Simultaneous VLANs: 4095
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 10240 bytes
Features: 802.1x authentication, Access Control List (ACL) support, ARP inspection, Authentication, Authorization and Accounting (AAA), Cable Diagnostics Function, DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, DoS attack prevention, Dynamic VLAN Support (GVRP), Flow control, Flow mirroring, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, Layer 2 isolation, LLDP support, LLDP-MED, Loop prevention, MAC based VLAN, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Port Security, Port-based VLAN, Private VLAN, Protocol-based VLANs support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Schedule PoE, sFlow, Spanning Tree Protocol (STP) support, Strict Priority (SP), VLAN management, VLAN support, VLAN trunking, Voice VLAN, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x console RJ-45, 1 x management (micro-USB), 2 x 10Gbit LAN SFP+, 24 x 10/100/1000 Base-T RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 120/230 volt
Frequency: 50/60 hertz
Power Consumption Operational: 900 watt
PoE Budget: 370 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 8.6 lbs
Certifications and Listing
Compliant Standards: ETSI EN 300 386, FCC Part 15 A, IEC 60950-1, IECS-003 Class A, RCM, UL/CSA60950-1
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, UPnP
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
