Product Information

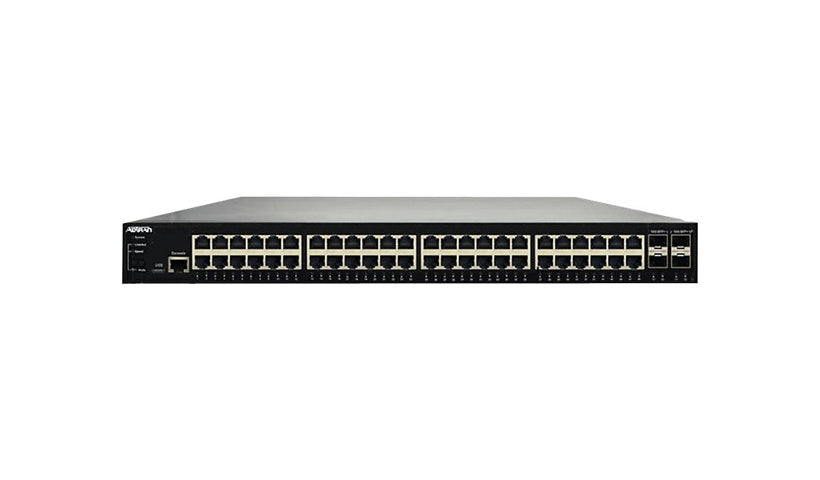

ADTRAN's NetVanta 1560-48 is a fully managed Layer 3 switch with 48 Gigabit PoE+ ports and four 10G SFP+ ports. It has a 740 W PoE budget and 176 Gbps of bandwidth, with 802.1x, ACLs and DoS protection.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 10G SFP+ ports
- 740 W PoE budget
- 176 Gbps bandwidth
- Layer 3, 802.1x, ACL
- Rack mount
Product Information
Brand: ADTRAN
Manufacturer: ADTRAN
Product Line: ADTRAN NetVanta
Model: 1560-48
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP 3, SSH
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption: SSL
Performance: Bandwidth: 176 Gbps
Capacity: VLANs supported: 4095
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 10240 bytes
Features: 802.1x authentication, Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, DHCP support, DiffServ support, DoS attack prevention, E-mail alert, Flow control, Full duplex mode, IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Network Access Protection (NAP), Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Strict Priority (SP), Surge protection, Syslog support, VoIP support, Weighted Round Robin (WRR) queuing
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x console RJ-45, 1 x management (micro-USB), 4 x 10Gbit LAN SFP+, 48 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 900 watt
PoE Budget: 740 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: LAN, Link/activity, PoE, Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 14.8 inch
Weight: 12.35 lbs
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, cUL No.60950-1, EN 60950-1, EN 61000-3-2, FCC Part 15 A, FCC Part 15 B, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
