Product Information

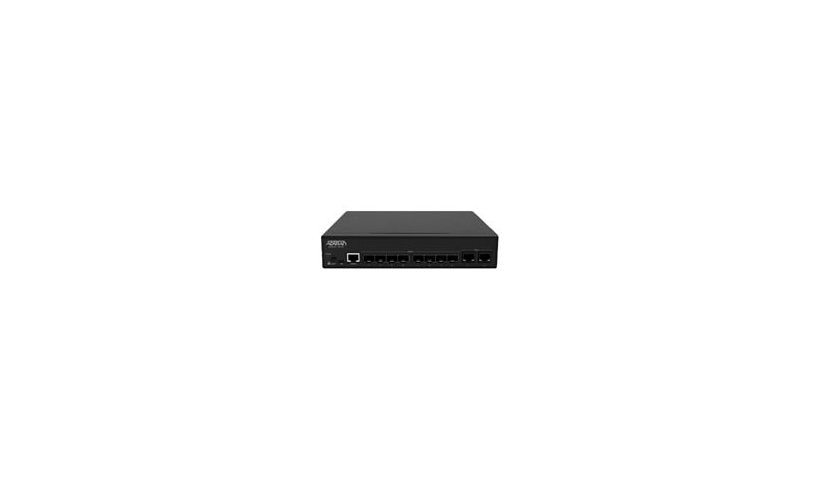

ADTRAN's NetVanta 1760-8F is a Layer 3 multi-gigabit aggregation and access switch offering eight 10G SFP+ ports and two RJ-45 ports up to 10G, all multi-rate, plus USB and RJ-45 consoles. It sits on a desk, mounts on a wall or goes in a rack.
Key Features
- 8 x multi-rate 10G SFP+ ports
- 2 x 100M/1G/2.5G/5G/10G RJ-45 ports
- Layer 3 managed
- USB and RJ-45 console ports
- Desktop, wall or rack mount
Product Information
Brand: ADTRAN
Manufacturer: ADTRAN
Product Line: ADTRAN NetVanta
Model: 1760-8F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Connectivity
Ports: 10
Port Quantity: 8
Port Type: SFP+
Ports (2nd) Quantity: 2
Ports Type (2nd): 100/1000/2.5G/5G/10G
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 170 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.8 inch
Weight: 8.6 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
