Product Information

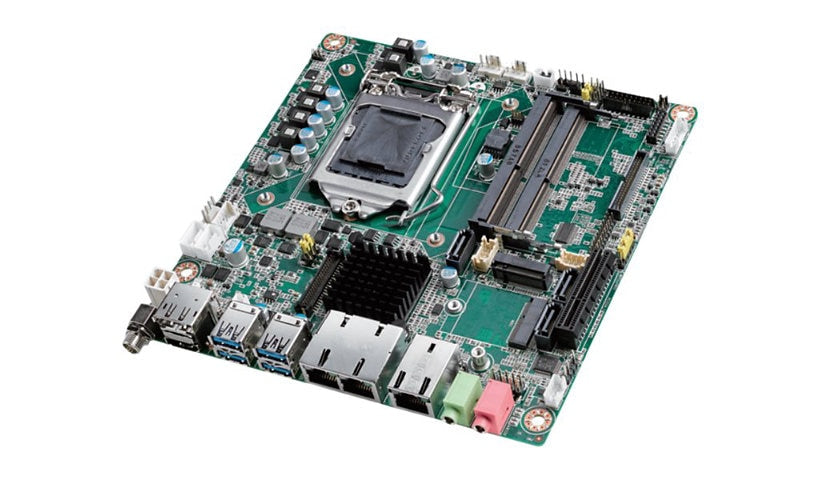

The Advantech AIMB-286 is a mini ITX board on the Intel H310 chipset for Intel Core, Pentium and Celeron processors on LGA1151. It takes two DDR4 SO-DIMMs up to 64 GB, offers three Gigabit LAN ports, three SATA ports and M.2 Key B and Key E slots, with TPM and a watchdog timer.
Key Features
- Intel H310 chipset, LGA1151, mini ITX
- 2 x DDR4 SO-DIMM, up to 64 GB, 2666 MHz
- 3 x Gigabit LAN (Realtek RTL8111H)
- 3 x SATA, M.2 Key B, M.2 Key E, PCIe 3.0 x4
- TPM and watchdog timer
- SATA and SATA power cables included
Product Information
Brand: Advantech
Manufacturer: IMC Networks
Product Line: Advantech
Model: AIMB-286
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Dual channel memory architecture
Connectivity
Network: 3 x Gigabit Ethernet
Audio Output: High Definition Audio
Output Type: Sound card
Integrated Graphics: Graphics adapter (CPU required)
Expansion Slots: 1 x CPU, 1 x M.2 socket (Key B), 1 x M.2 socket (Key E), 1 x PCIe 3.0 x4, 2 x SO-DIMM 260-pin
Memory and Processor
Compatible Processors: Celeron, Core i3, Core i5, Core i7, Pentium
Controller Type: Realtek RTL8111H
Processor Socket: LGA1151 Socket
Supported Memory Speed: 2666 MHz
Memory Slots: 2 SO-DIMM slots
Mainboard Supported RAM: DDR4 SDRAM
Supported RAM Integrity Check: Non-ECC
Storage Interfaces: SATA-600 -connectors: 3 x 7pin SATA - 3 devices
Chipset Type: Intel H310
Audio Codec: Realtek ALC888S
Processors Installed: 0
Max Memory Supported: 64 GB
Total Processor Supported: 1
Technical Information
BIOS Type: AMI
Hardware Features: Trusted Platform Module (TPM), WatchDog Timer
Form Factor (Motherboard): Mini ITX
Included Items
Cables: 1 x Serial ATA cable, 1 x Serial ATA power cable
Certifications and Listing
Compliant Standards: High Definition Audio
