Product Information

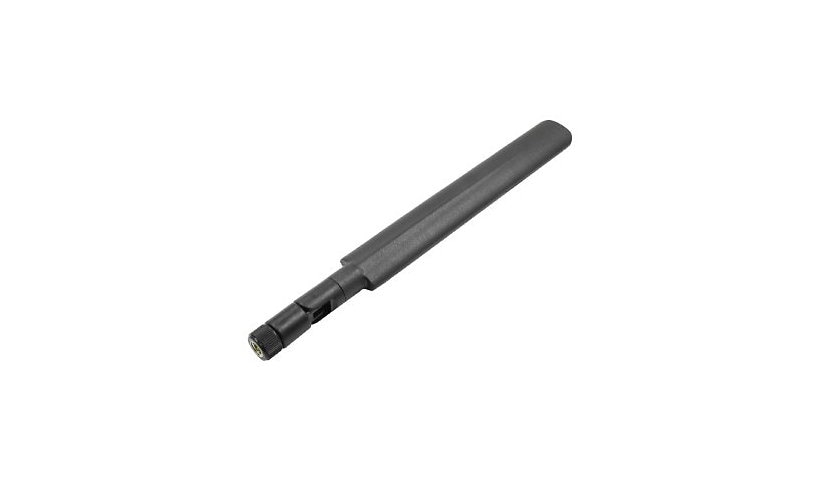

Advantech's ANT-LTE5G-025 is a 4.7 dBi dipole antenna for 2G through 5G cellular routers, covering 698 to 960 MHz and 1.71 to 5 GHz. It has an SMA male connector, a 7.8 in PC/ABS body and a -40 to 176 °F range.
Key Features
- 2G / 3G / 4G / 5G
- 698-960 MHz, 1.71-5 GHz
- 4.7 dBi dipole
- SMA male
- About 7.8 in tall
- -40 to 176 °F
Product Information
Brand: Advantech
Manufacturer: IMC Networks
Product Line: Advantech
Model: ANT-LTE5G-025
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 4.7 dBi
Antenna Compatibility: 2G, 3G, 4G, 5G, LTE
Frequency Range: 1.71 - 5 GHz, 698 - 960 MHz
Signaling Type: Cellular
Connectivity
Connector Provided: 1 x SMA male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dipole
Voltage Standing Wave Ratio (VSWR): 3.0
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Physical Characteristics
Materials: PC/ABS
Dimensions and Weight
Height: 7.8 inch
Width: 0.9 inch
Depth: 0.9 inch
Certifications and Listing
Compliant Standards: IP55
Warranty
Service Activation: No
