Product Information

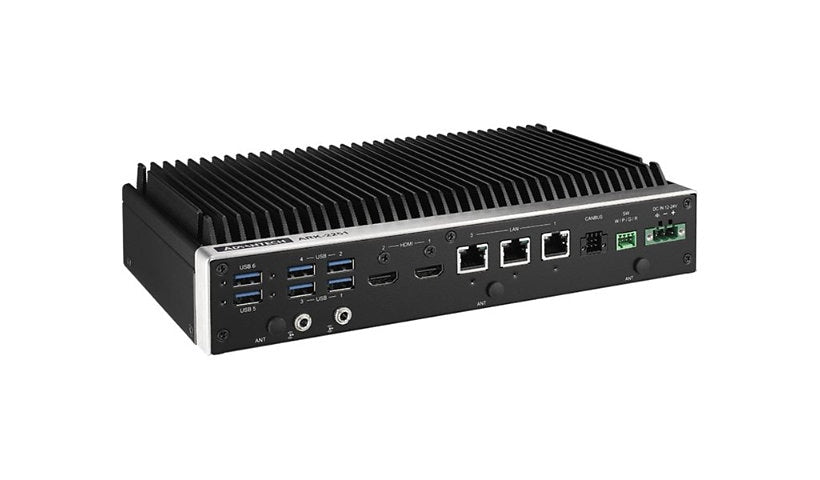

Advantech built the ARK-2251 as a compact box PC barebone with no fan, so it is not a standalone processor. It is built around an Intel Core i7-1365UE (10 cores, 1.7 GHz up to 4.9 GHz) with Intel Iris Xe Graphics and ships with no RAM, no storage and no operating system. Three Gigabit Ethernet ports and a wide 12 to 24 V input make it a fit for industrial installs.
Key Features
- Intel Core i7-1365UE, 10 cores, up to 4.9 GHz, 12 MB cache
- 2 x DDR5 SO-DIMM slots, up to 64 GB, no RAM installed
- 3 x Gigabit Ethernet (Intel I219, I226) with Wake on LAN
- 1 x 2.5 inch bay, M.2 Type M, M.2 Type E and Mini PCIe/mSATA
- Fanless design with watchdog timer
- 12 to 24 V power input via power adapter, no OS included
Product Information
Brand: Advantech
Manufacturer: IMC Networks
Product Line: Advantech
Model: ARK-2251
Product Type: PC barebone
Manufacturer Form Factor: Box-PC
Packaged Quantity: 1
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Operating System Edition: No operating system
Features: Wake On LAN (WOL)
Edition: Fanless
Connectivity
Expansion Bays: 1 (total) / 1 (free) x internal 2.5"
Ethernet Ports: 3 x Gigabit Ethernet
Slots: 1 (total) / 1 (free) x M.2 Type E (for wireless module), 1 (total) / 1 (free) x M.2 Type M (for internal storage), 1 (total) / 1 (free) x Mini PCIe/mSATA
Power
Power Device Type: Power adapter
Required Voltage: 12 - 24 volt
Power Consumption Operational: 43.13 watt
Memory and Processor
Processor Generation: 13
Cache Memory Installed: 12 megabyte
Available Memory Slots: 2
Memory Slots: 2
Ethernet Controllers: Intel I219, I226
Data Integrity Check: Non-ECC
Max Turbo Speed: 4.9 GHZ
Cores: 10-core
Processor Brand: Intel
Processor Type: Core i7
Processor Number: I7-1365UE
Processors Installed: 1
Clock Speed: 1.7 GHZ
RAM Installed: 0 GB
Memory Technology: DDR5 SDRAM
Max Memory Supported: 64 GB
Form Factor (RAM): SO-DIMM 262-pin
Total Processor Supported: 1
Drive Type: No optical drive
Hard Drive Interface Type: No HDD
Storage (2nd): None
Storage (3rd): None
Optical Drive Type: No optical drive, None
Optical Drive Type (2nd): None
Technical Information
Printer Product Type: None
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Ultra Small Form Factor
Built-in Devices: Watchdog timer
Dimensions and Weight
Height: 2.1 inch
Width: 10.2 inch
Depth: 5.5 inch
Weight: 5.07 lbs
