Product Information

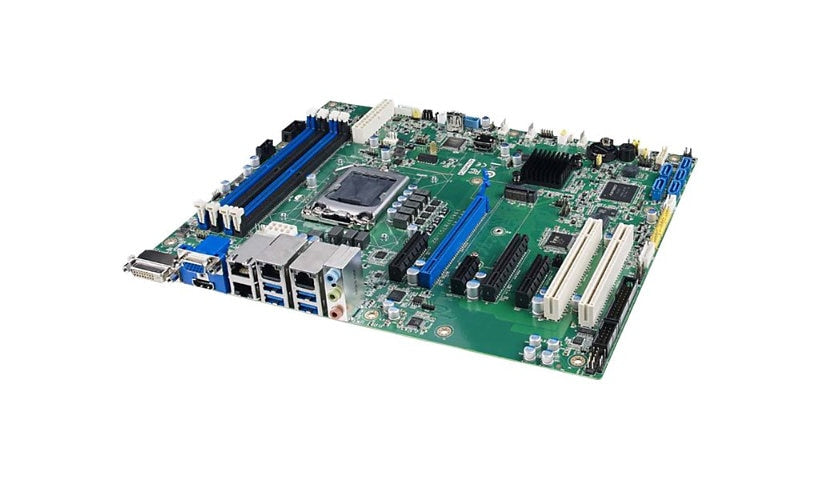

The Advantech ASMB-787 is an ATX board on the Intel W480E chipset for 10th gen Intel Core and Xeon W-1200 processors on LGA1200, with a maximum CPU TDP of 125 W. It supports up to 128 GB of DDR4 with ECC or non-ECC, offers dual Gigabit LAN and a mix of PCIe and legacy PCI slots, and includes a watchdog timer.
Key Features
- Intel W480E chipset, LGA1200, ATX
- 4 x DDR4, up to 128 GB, ECC or non-ECC, up to 2933 MHz
- PCIe 3.0 x16, x8, 2 x x4, 1 x x1, plus 2 x PCI
- 5 x SATA, 1 x M.2, software RAID 0/1/5/10
- 2 x Gigabit LAN (Intel I210-AT / I219)
- Watchdog timer, serial and SATA cables included
Product Information
Brand: Advantech
Manufacturer: IMC Networks
Product Line: Advantech
Model: ASMB-787
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Dual channel memory architecture
Connectivity
Network: 2 x Gigabit Ethernet
Audio Output: High Definition Audio
Output Type: Sound card
Integrated Graphics: Graphics adapter (CPU required)
Expansion Slots: 1 x CPU, 1 x PCIe 3.0 x16 (x16/x8 mode), 1 x PCIe 3.0 x8, 1 x PCIe x1, 2 x PCI, 2 x PCIe 3.0 x4, 4 x DIMM 288-pin
Power
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Memory and Processor
Compatible Processors: Core i3, Core i5, Core i7, Core i9, Xeon W-1200 series
RAID Features: Software RAID 0/ 1 / 10 / 5
Controller Type: Intel I210-AT / I219
Processor Socket: LGA1200 Socket
Supported Memory Speed: 2400 MHz, 2666 MHz, 2933 MHz
Memory Slots: 4 DIMM slots
Mainboard Supported RAM: DDR4 SDRAM
Supported RAM (Registered or Buffered): Unbuffered
Supported RAM Integrity Check: ECC, Non-ECC
Storage Interfaces: SATA-600 -connectors: 5 x 7pin SATA, SATA-600 / PCIe -connectors: 1 x M.2
Chipset Type: Intel W480E
Compatible Processors Comments: Supports 10th Generation Intel Core, Maximum TDP 125 Watt
Audio Codec: Realtek ALC892
Processors Installed: 0
Max Memory Supported: 128 GB
Total Processor Supported: 1
Technical Information
Hardware Features: WatchDog Timer
Form Factor (Motherboard): ATX
Included Items
Included Accessories: 1 x M.2 screw, I/O back cover
Cables: 1 x serial cable, 2 x Serial ATA cable
