Product Information

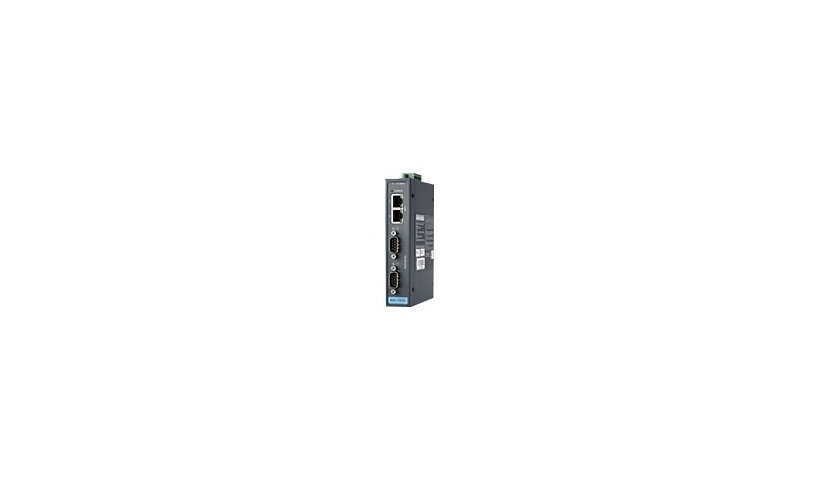

The Advantech EKI-1222-CE is a 2 port Modbus gateway that links Modbus serial devices to Ethernet networks. It has two RS-232/422/485 DB-9 ports and two 10/100 RJ-45 ports, with 15 kV ESD and surge protection, a watchdog timer and flow control. It supports DHCP, BOOTP, DNS, NTP and SMTP alerts and is managed by web, Telnet and SNMP. It runs on DC power at about 3.2 W in a metal case for wall or DIN rail mounting.
Key Features
- 2 port Modbus gateway
- RS-232/422/485 DB-9
- 2 x 10/100 Ethernet
- 15 kV ESD, surge protection
- Watchdog timer
- Wall or DIN rail, metal
Product Information
Brand: Advantech
Manufacturer: IMC Networks
Product Line: Advantech
Model: EKI-1222
Product Type: Gateway
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Modbus, RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, DNS, HTTP, NTP, SMTP, TCP/IP
Remote Management: HTTP, ICMP, NTP, SMTP, SNMP, Telnet
Features: 15KV ESD Protector, BOOTP support, DHCP support, Flow control, Metal housing, Modbus compatible, SNMP support, Surge protection, Watch Dog Timer (WDT)
Connectivity
Ports: 2
Interface Provided: 2 x 100Base-TX - RJ-45, 2 x RS-232/422/485 - DB-9
Power
Power Consumption Operational: 3.2 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor: Wall / DIN rail mountable
Status Indicators: Link/activity, Power, Status, System
Dimensions and Weight
Height: 5.5 inch
Width: 1.4 inch
Depth: 3.7 inch
Weight: 16.93 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Compliant Standards: EN 55011, EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-4, EN55024, FCC Part 15 B Class A, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 60950
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
