Product Information

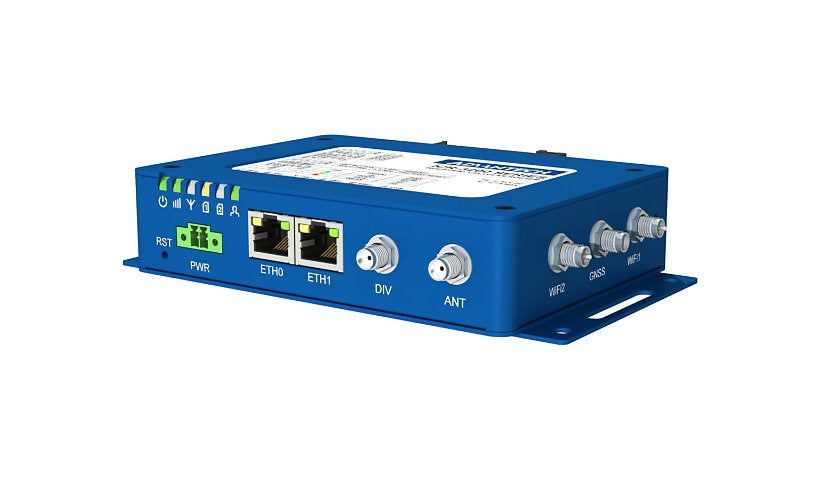

The Advantech ICR-3241W (ICR-3241W-1ND) is an industrial cellular router for M2M and IoT sites such as kiosks, meters, traffic controllers and remote cabinets. It connects over LTE with two Mini-SIM slots and eSIM support, and adds dual-band Wi-Fi 5, Bluetooth 5.1 and GNSS positioning. Two Ethernet ports, a metal housing and a -40 to 167 F operating range make it fit for harsh locations. VPN options include IPsec, OpenVPN, WireGuard and L2TP.
Key Features
- LTE cellular (FDD LTE, HSPA+, UMTS), FirstNet ready
- 2 x Mini-SIM slots plus eSIM support
- Wi-Fi 5 (802.11ac) dual band, Bluetooth 5.1
- 2-port Ethernet switch
- VPN: IPsec, OpenVPN, WireGuard, L2TP, GRE
- 1 GHz CPU, 512 MB RAM, 4 GB flash, ICR-OS
- Metal housing, -40 to 167 F, DIN rail or wall mount
Product Information
Brand: Advantech
Manufacturer: IMC Networks
Product Line: Advantech
Model: ICR-3241W
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.1, Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DHCP, HTTPs, IPSec, L2TP, OpenVPN, PPPoE, PPTP, SFTP, SMTP, WireGuard
Remote Management: SNMP, SSH
Routing Protocol: BGP, IS-IS, NHRP, OSPF, RIP
Authentication Method: RADIUS, TACACS+
Encryption: 3DES, AES, DES, IKEv1, IKEv2, MD5, RSA, SHA, WEP, WPA, WPA2, WPA3
Modem Transmission Data Rate: 150 MBps
Line Coding Format: 4 DQPSK, 8 DPSK, GFSK
Integrated Switch: 2-port switch
Wireless LAN: 802.11a/b/g/n/ac, Bluetooth 5.1
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: FDD LTE, HSPA+, UMTS
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Operating System Edition: ICR-OS
Key Features: Firewall, VPN support
Features: 2x2 MIMO technology, Battery-backed real-time clock (RTC), DMZ support, DNS proxy, Dynamic DNS client, eSIM support, Firmware Over-the-Air (FOTA), FirstNet ready, GPS/GLONASS/Galileo/BeiDou/QZSS support, GRE tunneling, Hardware watchdog, Host port routing, IP address filtering, Load balancing, MAC address filtering, Metal housing, NAT support, NTP client, NTP server, PAT support, Port filtering, Port forwarding, Quality of Service (QoS), Simple Certificate Enrollment Protocol (SCEP), SNMP trap, VLAN support, Web server
Connectivity
Expansion Slots: 2 (total) / 2 (free) x Mini-SIM
Memory and Processor
Clock Speed: 1 GHZ
RAM Installed: 512 megabyte
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Cellular, Data, Ethernet link/activity, Signal strength, SIM status, System, User
Dimensions and Weight
Height: 1.2 inch
Width: 5.1 inch
Depth: 3.7 inch
Weight: 16.82 ounce
Included Items
Included Accessories: DIN-rail clip, I/O connector, Power connector, Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1x
