Product Information

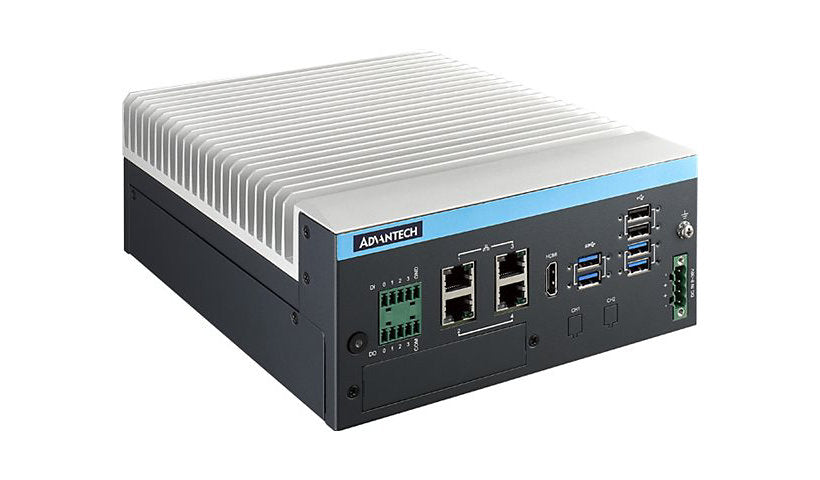

Advantech's MIC-733 (MIC-733-AO6A1) is an edge AI computer. Inside, it has an NVIDIA Jetson AGX Orin processor, 64 GB of LPDDR5 RAM plus a 64 GB SSD, and ships with Nvidia JetPack 5.0. Powered by the NVIDIA Jetson AGX Orin module with a 12-core Arm Cortex-A78AE CPU and NVIDIA Ampere GPU, it runs NVIDIA JetPack 5.0 for AI inference at the edge.
Key Features:
- Processor: NVIDIA Jetson AGX Orin, 12 cores, up to 2.2 GHz
- NPU: up to 275 TOPS for AI tasks
- Memory: 64 GB LPDDR5
- Storage: 64 GB SSD
- Graphics: NVIDIA Ampere
- OS: Nvidia JetPack 5.0
Specifications:
- Brand: Advantech
- Manufacturer Part Number: MIC-733-AO6A1
- Processor: NVIDIA Jetson AGX Orin
- Cores: 12
- Memory: 64 GB LPDDR5
- Storage: 64 GB SSD
- Operating System: Nvidia JetPack 5.0
- Max Turbo: 2.2 GHz
- CPU Cache: 6 MB
- NPU Performance: 275 TOPS
- Internal Slots: 1 (total) / 1 (free) x M.2 Card (3052 M.2 Key B slot), 1 (total) / 1 (free) x Mini PCIe, 2 Nano-SIM card, PCIe x8
- Graphics: NVIDIA Ampere
- Video Outputs: HDMI
- Ports: 1 x HDMI, 1 x USB - micro-USB (OTG), 1 x USB 2.0, 1 x USB 2.0 (1 internal), 2 x serial (RS-232/422/485), 2 x USB 3.2 Gen 2, 4 x LAN (Gigabit Ethernet) - RJ-45, Digital input (4 channel / isolated), Digital output (4 channel / isolated)
- Input Voltage: DC 9 - 36 V
