Product Information

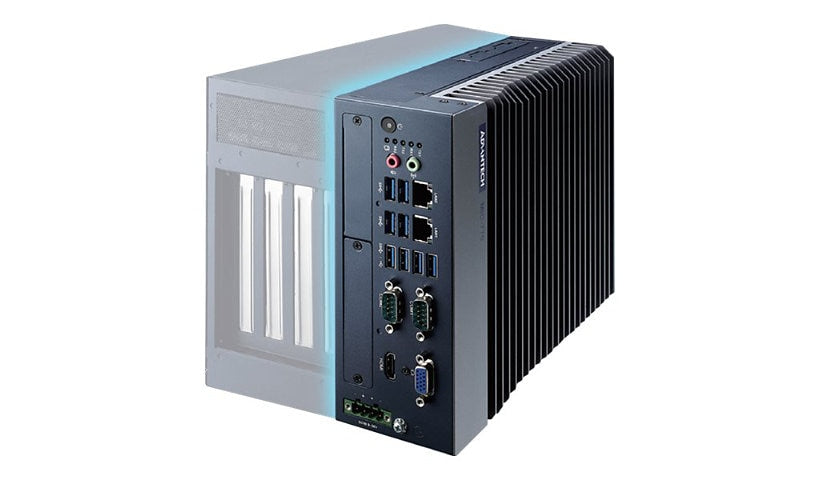

Advantech's MIC-770 V3 (MIC-770V3W-00A2U) is a compact fanless pc barebone. It is supplied without a CPU, memory or storage and is built on the Intel R680E chipset with an LGA1700 socket, so you can configure it for industrial and embedded applications.
Key Features:
- Graphics: Intel UHD Graphics
- Intel R680E chipset; LGA1700 socket (CPU not included)
- 2x Gigabit Ethernet
- HDMI and VGA video outputs
- 2x serial ports; USB 3.2 Gen 2 and Gen 1 ports
- DC 9-36V input
Specifications:
- Brand: Advantech
- Manufacturer Part Number: MIC-770V3W-00A2U
- Memory Speed: 4800 MHz
- Max Memory: 64 GB
- Internal Slots: 1 (total) / 1 (free) x M.2 Type M - 2280 (PCIe 4.0 x4 (NVMe) mode), 1 (total) / 1 (free) x mSATA, 2 (total) / 2 (free) x Mini PCIe
- Graphics: Intel UHD Graphics
- Video Outputs: HDMI, VGA
- Ports: 1 x audio line-out, 1 x HDMI, 1 x microphone, 1 x USB 2.0 (1 internal), 1 x VGA, 2 x LAN (Gigabit Ethernet), 2 x serial, 2 x USB 3.2 Gen 2, 6 x USB 3.2 Gen 1
- Ports & Features: Dual channel memory architecture
- Input Voltage: DC 9 - 36 V
