Product Information

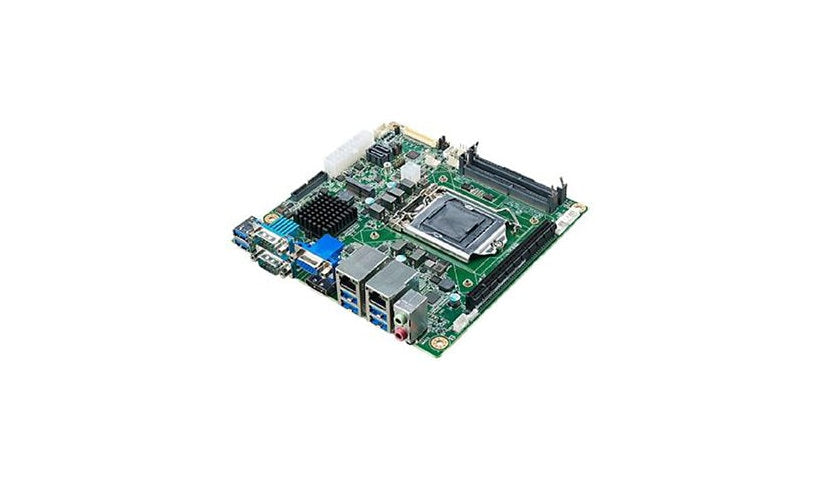

The Advantech PPC-MB-610 is a mini ITX board on the Intel Q370 chipset for 8th and 9th gen Intel Core, Pentium Gold and Celeron processors on LGA1151. It takes two DDR4 SO-DIMMs up to 32 GB, provides Gigabit and 2.5 Gigabit LAN, and adds M.2, Mini PCIe and a PCIe x16 slot for expansion. A watchdog timer is built in.
Key Features
- Intel Q370 chipset, LGA1151, mini ITX
- 2 x DDR4 SO-DIMM, up to 32 GB, 2666 MHz
- Gigabit and 2.5 Gigabit LAN (Intel I219LM / I226LM)
- M.2 Key E, M.2 Key M, Mini PCIe/mSATA, PCIe x16
- 2 x SATA-600
- Watchdog timer
Product Information
Brand: Advantech
Manufacturer: IMC Networks
Product Line: Advantech
Model: PPC-MB-610
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity
Network: 2.5 Gigabit Ethernet, Gigabit Ethernet
Audio Output: High Definition Audio
Output Type: Sound card
Integrated Graphics: Graphics adapter (CPU required)
Expansion Slots: 1 x CPU, 1 x M.2 socket (Key E), 1 x M.2 socket (Key M), 1 x Mini PCIe / mSATA, 1 x PCIe x16, 2 x SO-DIMM 260-pin
Memory and Processor
Compatible Processors: Celeron, Core i3, Core i5, Core i7, Pentium Gold
Controller Type: Intel I219LM / I226LM
Processor Socket: LGA1151 Socket
Supported Memory Speed: 2666 MHz
Memory Slots: 2 SO-DIMM slots
Mainboard Supported RAM: DDR4 SDRAM
Supported RAM Integrity Check: Non-ECC
Storage Interfaces: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices
Chipset Type: Intel Q370
Compatible Processors Comments: Supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron
Processors Installed: 0
Max Memory Supported: 32 GB
Total Processor Supported: 1
Technical Information
Hardware Features: WatchDog Timer
Form Factor (Motherboard): Mini ITX
Dimensions and Weight
Width: 6.7 inch
Depth: 6.7 inch
