Product Information

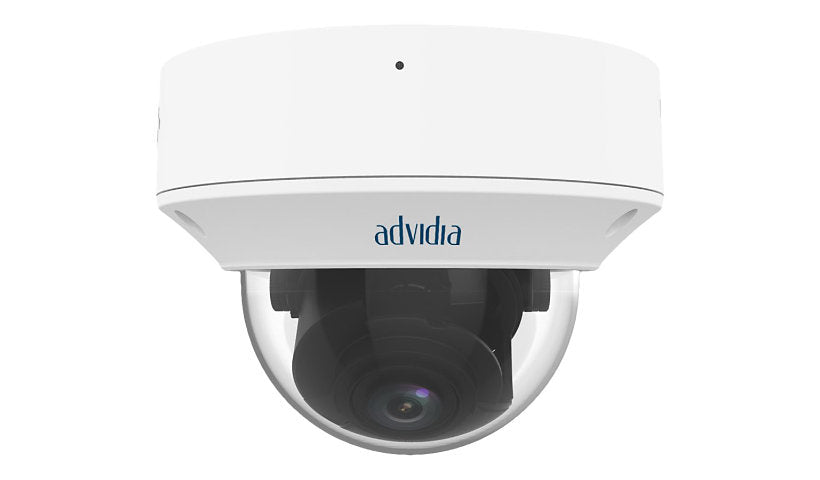

The Advidia M-87-V is an 8 MP dome recording 3840 x 2160 at 20 fps with a 1/2.8 inch sensor, 120 dB WDR and a 2.8 to 12 mm motorized lens (4.3x). IR reaches 131 ft, it has two way audio, alarm I/O and cross line and intrusion detection, and runs on 12 V DC or PoE. Vandal and weatherproof.
Key Features
- 8 MP, 4K at 20 fps
- 2.8 to 12 mm motorized
- IR up to 131 ft
- 120 dB WDR
- Two way audio, alarm I/O
- 12 V DC or PoE
Product Information
Brand: Advidia
Manufacturer: i-PRO Americas
Product Line: Advidia
Model: M-87-V
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 3-Axis Adjustment, Audio Detection, Backlight Compensation (BLC), Cross Line Detection, Digital Noise Reduction, Entrance / exit detection, Highlight Compensation (HLC), Intrusion detection, Motion Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Progressive scanning, Smart IR, Tamper-detection, White balance, Wide Dynamic Range (WDR)
Software Type: Video Insight VMS License
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QOS, RTP, RTSP, SMTP, SSL, TCP/IP, UDP/IP, UPnP
Ports: Audio line in, Audio line out, LAN/power
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 107.4
Angular Field of View (V, Max, Degree): 54.2
Infrared Distance: 131 ft
Infrared LEDs: Yes
Max Focal Length: 12 millimetre
Optical Zoom: 4.3
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: 0 to 80
Motion Detection: Yes
Panning Range (degree): 0 to 355
Angular Field of View (H, Min, Degree): 29.2
Angular Field of View (V, Min, Degree): 16.3
Minimum Illumination: 0 lux - infrared LEDs on, 0.003 lux F1.6 - AGC on
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 3840 x 2160
Max Frame Rate: 20 frames per second
Shutter Speed (Max): 1/100000 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, Ultra 265
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio capability
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.4 inch
Width: 5.8 inch
Depth: 5.8 inch
Weight: 34.21 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
