Product Information

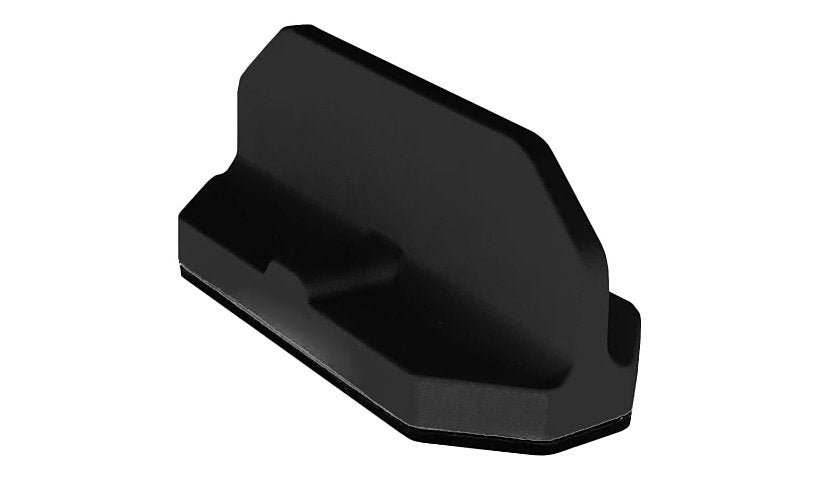

The Airgain Antenna Plus M2MAX (AP-M2M2-CCG-Q-S222-BL-10) is a black outdoor 3 lead antenna with 2x2 MIMO LTE and GNSS for GPS, GLONASS, Galileo, BeiDou and QZSS. It covers 1.7 to 2.7 GHz and 1550 to 1610 MHz, and the low band is listed as 689 to 960 MHz. It is rugged, IP67 dust and water resistant, MIL-STD 810 and RoHS, with RHCP on the GNSS element. It fits with a threaded bolt, is 4.8 inches tall and has three 10 ft cables with SMA male connectors.
Key Features
- 2x2 LTE plus GNSS antenna
- GPS, GLONASS, Galileo, BeiDou
- IP67, MIL-STD 810
- Threaded bolt mount
- 3 x 10 ft cables, SMA male
- Black, 4.8 in tall
Product Information
Brand: Airgain
Manufacturer: Airgain
Product Line: Airgain Antenna Plus M2MAX
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Outdoor, Threaded bolt mount
Antenna Compatibility: BeiDou, GALILEO, GLONASS, GNSS, GPS, LTE, QZSS
Frequency Range: 1.7 - 2.7 GHz, 1550 - 1610 MHz, 689 - 960 MHz
Signaling Type: Cellular, Navigation
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 3 x GPS / cellular antenna - SMA (male)
Technical Information
Antenna Features: 2x MIMO, Dust resistant, IP67, MIL-STD 810, Right-hand circular polarization (RHCP), RoHS, Rugged, Water-resistant
Dimensions and Weight
Antenna Length: 4.8 inch
Height: 2.2 inch
Width: 2.6 inch
Length: 4.8 inch
Included Items
Cables: 3 x antenna cable - 10 ft
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
